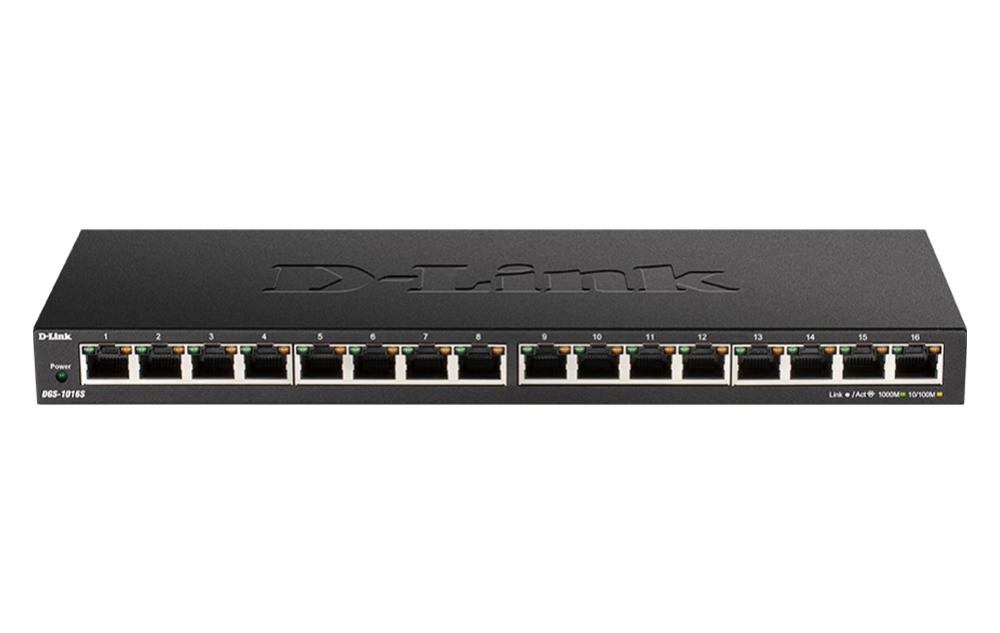

D-Link 16-P Low Profile Unmanaged switch (DGS-1016S)
$128
Out of stock
Description
The DGS-1016S 16-Port Gigabit Desktop Switch is for home and Small-Medium Business (SMB) users. This desktop switch is built with a compact and sturdy metal design that makes use of power-saving technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. The DGS-1016S provides 16 Gigabit ports for an easy expansion or a quick Gigabit connectivity upgrade to your network.
RJ-45 Ports: 16
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 16 10/100/1000 Mbps LAN ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: No
Number of PoE Ports: 0
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 14,880 pps per port
Switching Capacity in Gigabits per Second (Gbps): 32 Gbps
Web-based GUI: No
Redundant Power Supply: No
19″ Rack Mountable: Desktop or Wall mount Placement
Additional information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 31.0200 × 15.0000 × 8.0000 cm |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Safety | LVD |
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 564658 h |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 8.89 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Heat dissipation | 30.32 BTU/h |
| Width | 280 mm |
| Depth | 110 mm |
| Height | 25 mm |
| Weight | 770 g |
| Certification | CE, FCC, ICES 003, RCM |
| Harmonized System (HS) code | 85176990 |
