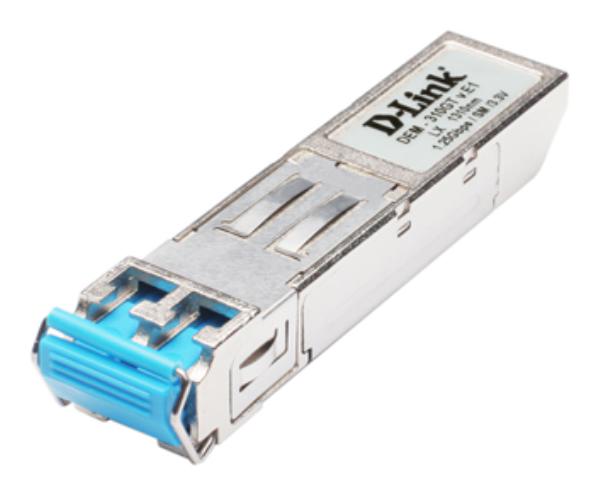

D-Link 1000Base-LX SFP Transceiver (DEM-310GT)

$151

In stock

SKU: DEM-310GT Categories: , Brand:

Description

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.The DEM-310GT is a high performance 1310nm Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability.

1000BASE-LX port (IEEE 802.3z standard)

Duplex LC connector

Full duplex operation

802.3x flow control support

Fiber type: 9um single-mode fiber up to 10km

Wave length: 1310nm

Power support 3.3V

Power budget: 10.5dB

Hot pluggable

Class 1 laser product complies with EN 60825-1

TTL signal detect idicator

Metal enclosure for lower EMI

Additional information

Weight 0.13 kg
Dimensions 15.0000 × 10.0000 × 5.0000 cm
SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

No

Fiber optic connector

LC

SFP transceiver standard

LX

Maximum transfer distance

10000 m

Wavelength

1310 nm

Ethernet interface type

Gigabit Ethernet

Networking standards

IEEE 802.3z

Cabling technology

1000Base-LX

Duplex system

Full

Product colour

Metallic

Hot-Plug support

Yes

Hot-swap

Yes

Maximum voltage

3.3 V

Certification

MSA, RoHS

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-40 – 85 °C

Package width

74 mm

Package depth

131 mm

Package height

49 mm

Package weight

64 g

Dimensions (WxDxH)

29.8 x 11.8 x 56.3 mm

I/O ports

mini-GBIC

Shipping (inner) case length

36 cm

Shipping (inner) case width

26 cm

Shipping (inner) case height

31 cm

Shipping (inner) case net weight

3.2 kg

Products per shipping (inner) case

50 pc(s)

Pallet gross weight (air)

246.8 kg

Master (outer) cases per pallet (air)

54 pc(s)

Products per pallet (air)

2700 pc(s)

Pallet gross length

102 cm

Pallet gross width

122 cm

Pallet height (air)

199 cm

Pallet gross weight (sea)

246.8 kg

Master (outer) cases per pallet (sea)

54 pc(s)

Products per pallet (sea)

2700 pc(s)

Pallet height (sea)

199 cm

Shipping (inner) case gross weight

4.2 kg

Harmonized System (HS) code

85177900

Product type

Transceiver Module (SFP/QSFP)

Brand compatibility

D-Link
