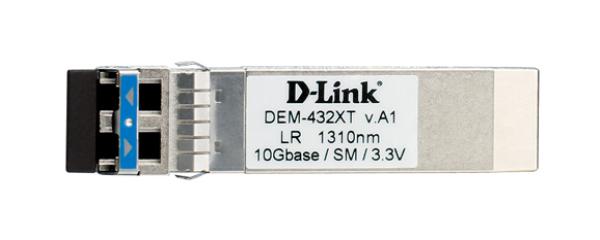

D-Link 10GBase-LR SFP+ Transceiver (DEM-432XT)

$287

In stock

SKU: DEM-432XT Categories: , Brand:

Description

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications. The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa.

Supports 10G Ethernet (10GBase-LR, up to 10km)

Enhanced Small Form-Pluggable (SFP+) form factor

Hot pluggable

RoHS Compliant

Compliant with MSA (Multiple Source Agreement)

Compliant with IEEE802.3ae and 802.3aq standards

Advance Warranty Replacement (24 Hour Cross-shipment)

Additional information

Weight 0.2 kg
Dimensions 13.0000 × 7.8000 × 4.6000 cm
SFP transceiver type

Fiber optic

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

No

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

LR

Wavelength

1310 nm

Tx power (min)

-8.5 dBmW

Tx power (max)

0.5 dBmW

Rx power (min)

-12.6 dBmW

Rx power (max)

0.5 dBmW

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Fiber optic connector

LC

Maximum transfer distance

10000 m

Product type

Transceiver Module (SFP/QSFP)

Brand compatibility

D-Link
