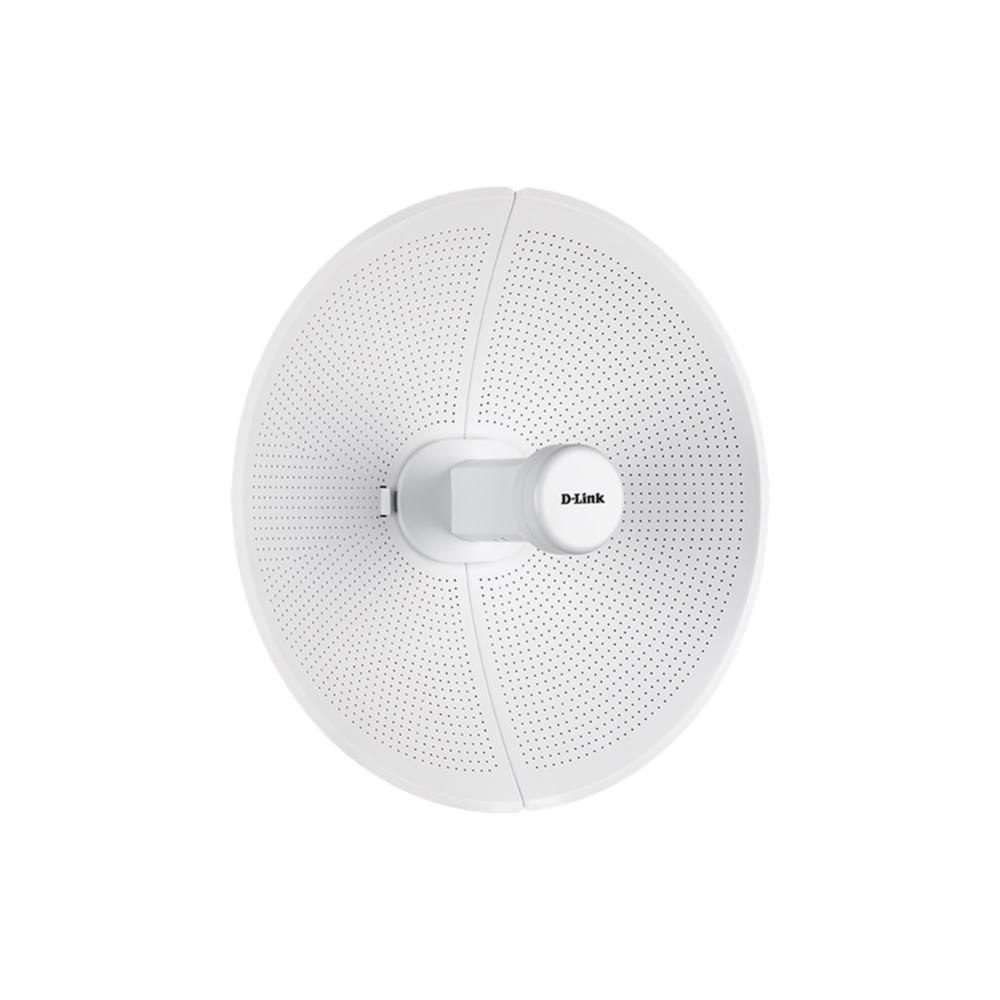

D-Link Long Range WiFi 5 Wireless Bridge (DAP-3712)
$386
Out of stock
Description
The DAP-3712 provides reliable, long-distance connectivity between multiple sites such as office branches, construction sites or transportation hubs, in both rural or busy city areas. Using proven Wi-Fi 5 technology with speeds of up to 867Mbps and itâs easy to install design, the DAP-3712 Long Range Wireless Bridge from D-Linkâs Business Solutions range offers a compelling connectivity solution versus expensive Fibre-based offerings.
Point-to-Point or Point-to-Multipoint connection
Up to 20 km distance
802.11ac wireless technology on 5GHz band
TDMA technology for better performance
High power 27 dBm design
23 dBi directional antenna
Weather Proof outdoor design (IP66 rated)
8 kV surge protection
Supports standard IEEE 802.3at PoE
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 40.5000 × 22.0000 × 20.0000 cm |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 20000 m |
| Antenna design | External |
| Antenna gain level (max) | 23 dBi |
| Antennas quantity | 1 |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Frequency band | 5.180 – 5.825 GHz |
| Signal strength | 27 dBm |
| Channels quantity | 2 channels |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Static IP | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | 128-bit AES |
| MAC address filtering | Yes |
| Web-based management | Yes |
| DHCP client | Yes |
| Product type | Network bridge |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP66 |
| Surge protection | Yes |
| Power source type | PoE |
| Power consumption (typical) | 15 W |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Operating temperature (T-T) | -40 – 65 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -40 – 85 °C |
| Storage relative humidity (H-H) | 0 – 90% |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | CE, FCC |
| Width | 372 mm |
| Depth | 241 mm |
| Height | 372 mm |
| Weight | 900 g |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
