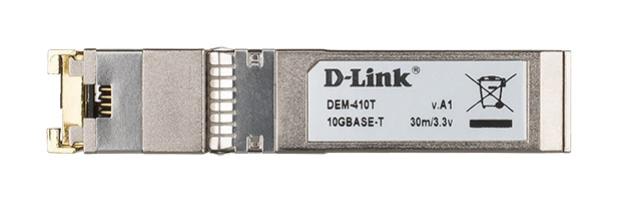

D-Link 10GBASE-T RJ45 Copper Transceiver (DEM-410T)

$207

Out of stock

SKU: DEM-410T Categories: , Brand:

Description

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6A UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6A, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity. It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.

Supports 10G Ethernet (10GBase-T)

10GBASE-T up to 30m with Cat 6A

1000BASE-T up to 100m with Cat 5E

Hot pluggable SFP+

RoHS Compliant

Compliant with MSA (Multiple Source Agreement)

Compliant with IEEE802.3ae standard

Additional information

Weight 0.2 kg
Dimensions 0.0000 × 0.0000 × 0.0000 cm
SFP transceiver type

Copper

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

SFP transceiver standard

T

Maximum transfer distance

30 m

Ethernet LAN

Yes

Ethernet interface type

10 Gigabit Ethernet

Networking standards

IEEE 802.3ab, IEEE 802.3an

Ethernet LAN (RJ-45) ports

1

Fiber ethernet cabling technology

10GBASE, 1000BASE

Product colour

Gold, Silver

Mean time between failures (MTBF)

217186 h

Input voltage

3.3 V

Compliance certificates

RoHS

Safety

LVD

Certification

CE, FCC, VCCI

Operating temperature (T-T)

0 – 60 °C

Storage temperature (T-T)

-40 – 85 °C

Operating relative humidity (H-H)

5 – 95%

Storage relative humidity (H-H)

5 – 95%

Width

13.7 mm

Depth

68 mm

Height

8.5 mm

Weight

20 g

Package width

74 mm

Package depth

131 mm

Package height

49 mm

Package weight

64 g

Shipping (inner) case length

36 cm

Shipping (inner) case width

26 cm

Shipping (inner) case height

31 cm

Shipping (inner) case net weight

3.2 kg

Products per shipping (inner) case

50 pc(s)

Pallet gross weight (air)

272 kg

Master (outer) cases per pallet (air)

60 pc(s)

Products per pallet (air)

3000 pc(s)

Pallet gross length

102 cm

Pallet gross width

122 cm

Pallet height (air)

199 cm

Pallet gross weight (sea)

272 kg

Master (outer) cases per pallet (sea)

60 pc(s)

Products per pallet (sea)

3000 pc(s)

Pallet height (sea)

199 cm

Shipping (inner) case gross weight

4.2 kg

Harmonized System (HS) code

85369010
