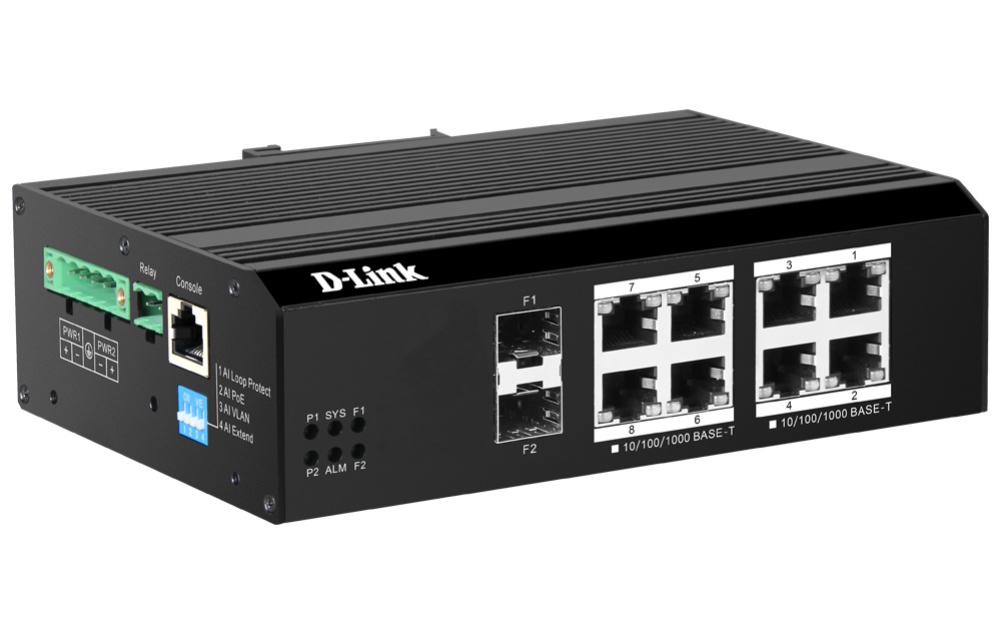

D-Link 10-Port Smart Mnaged PoE+ Switch (DIS-F200G-10PS-E)
$681
Out of stock
Description
The DIS-F200G Series Gigabit Industrial Smart Managed PoE+ Switches are equipped with 4 (DIS-F200G-6PS-E) and 8 (DIS-F200G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These Switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-F200G Series furthermore integrate advanced management and security functions to provide a complete industrial networking solution.
RJ-45 Ports: 8
RJ-45 Speeds: 1Gbps
Combo Ports (RJ-45 + SFP): 8 BASE-T PoE+, 2 SFP and 1 RJ-45 Console Port
SFP (Small Form-Factor Pluggable) Ports : 2
SFP Speeds: 1G
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 8
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 14.9
Switching Capacity in Gigabits per Second (Gbps): 20
Web-based GUI: No
Redundant Power Supply: Yes
19″ Rack Mountable: No
DIN-Rail Mountable: Yes
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: Yes
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 25.5000 × 18.0000 × 6.5000 cm |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| MAC address table | 8000 entries |
| Product colour | Black |
| Housing material | Metal |
| DIN rail mounting | Yes |
| Power source | DC |
| Power supply included | No |
| DC input voltage | 48 – 56 V |
| Power consumption (max) | 240 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 – 75 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Heat dissipation | 35 BTU/h |
| Width | 159 mm |
| Depth | 105 mm |
| Height | 39 mm |
| Weight | 750 g |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
