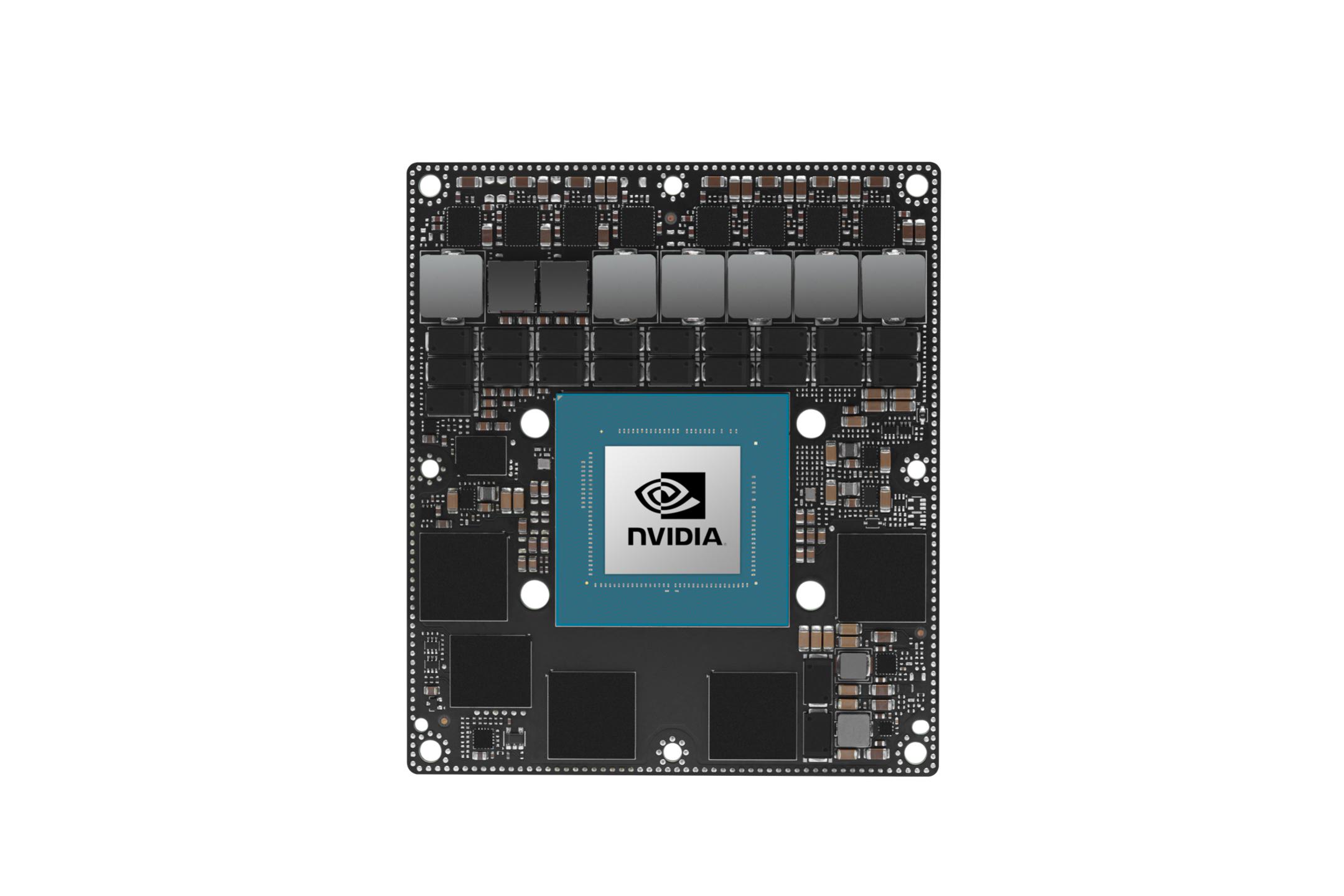

NVIDIA Jetson AGX Orin 32GB Module (900-13701-0040-000)


Out of stock

SKU: 900-13701-0040-000 Category:


The NVIDIA Jetson AGX Orin 32GB module delivers up to 200 TOPS of AI performance with power configurable between 15W and 40W. This gives you more than 6X the performance of Jetson AGX Xavier in the same compact form-factor for robotics and other autonomous machine use cases.This system-on-module supports multiple concurrent AI application pipelines with the NVIDIA Ampere GPU architecture, next-generation deep learning and vision accelerators, high-speed IO, and fast memory bandwidth. Now you can develop solutions using your largest and most complex AI models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.

AI Performance: 200 TOPS (INT8)

GPU: NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores

Max GPU Freq: 939 MHz

CPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

CPU Max Freq: 2.2 GHz

DL Accelerator: 2x NVDLA v2.0

DLA Max Frequency: 1.4 GHz

Vision Accelerator: PVA v2.0

Memory: 32GB 256-bit LPDDR5 204.8 GB/s

Storage: 64GB eMMC 5.1

CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)

Video Encode: 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1

Video Encode: 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1

Additional information

Weight0.000 kg
