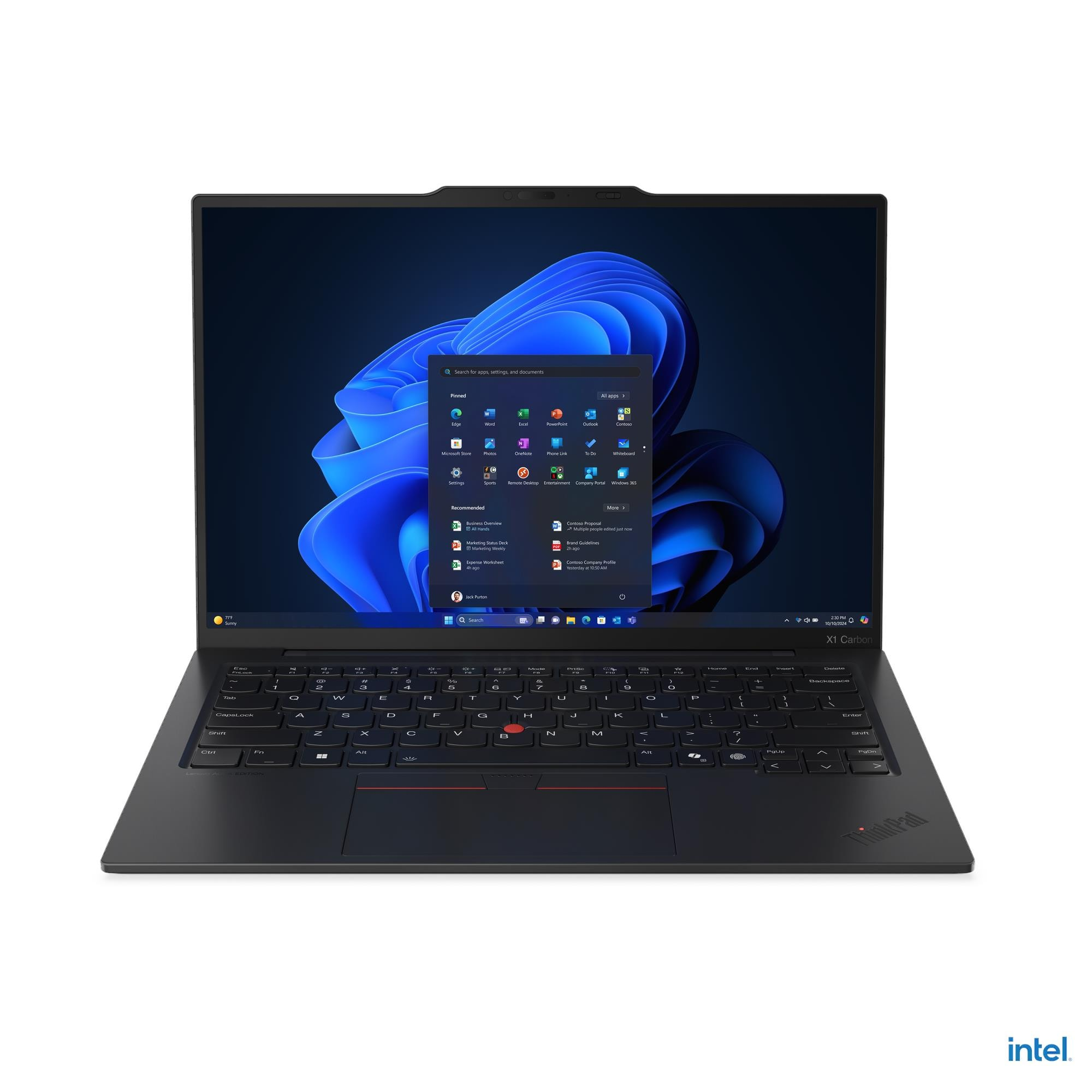

Lenovo ThinkPad X1 Carbon G13 Aura U5-228V, 32GB, 512GB, Intel Arc, 14″ WUXGA, W11P, 3Y PS (21NS00QJAU)
$3,444
In stock
Description
Intel Core Ultra 5 228V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel Smart Cache
32GB Soldered LPDDR5X-8533, 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
14″ WUXGA (1920×1200) IPS Display, 500 nits, Anti-glare, 100% sRGB, 60Hz, Low Power
Integrated Intel Arc Graphics 130V, FHD 1080p + IR Camera with Privacy Shutter, Dolby Atmos Stereo Speakers, Intel WiâFi 7 BE201 + Bluetooth 5.4, 2x USB-C (Thunderbolt 4 / USB4 40Gbps) with Power Delivery & DisplayPort 2.1, 2x USB-A (USB 3.2 Gen 1), HDMI 2.1, Headphone / Microphone Combo Jack
Windows 11 Pro, English (US) / English (UK)
Additional information
| Weight | 2.36 kg |
|---|---|
| Dimensions | 45.6000 × 30.4000 × 7.1000 cm |
| Anti-glare screen | Yes |
| RGB colour space | sRGB |
| Colour name | Black, Paint |
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Aluminium, Carbon fibre |
| Display diagonal | 14" |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 500 cd/m² |
| Colour gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 228V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Low Power Efficient-core Base Frequency | 2100 MHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 97 TOPs |
| NPU performance up to | 40 TOPs |
| GPU performance up to | 53 TOPs |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 8533 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Card reader integrated | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 130V |
| Audio chip | Realtek ALC713 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2×2 |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
| Motherboard chipset | Intel SoC |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard language | English |
| Copilot key | Yes |
| Operating system language | ENG-UK, US English |
| Microsoft Copilot | Yes |
| Operating system installed | Windows 11 Pro |
| Bundled software | Intel Connectivity Performance Suite + Lenovo AI Now |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 57 Wh |
| Fast charging | Yes |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 – 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Operating temperature (T-T) | 5 – 35 °C |
| Storage temperature (T-T) | 5 – 43 °C |
| Operating relative humidity (H-H) | 8 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Maximum shipping altitude | 3048 m |
| Certification | Eyesafe MIL-STD-810H TCO 9 Zoom Certified – Premium Laptop |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) |
| Width | 312.8 mm |
| Depth | 214.8 mm |
| Height (front) | 8.38 mm |
| Height (rear) | 1.48 cm |
| Weight | 986 g |
| AC adapter included | Yes |
| Brand compatibility | Lenovo |
