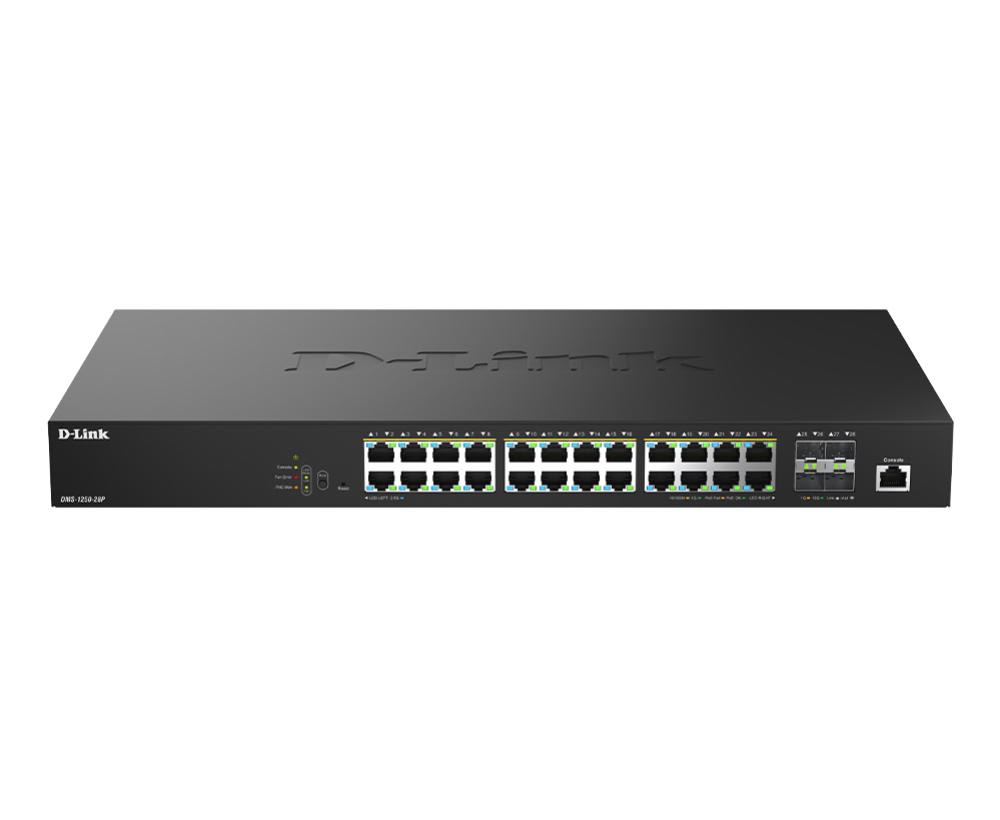

D-Link 28-Port MGigabit Smart POE (DMS-1250-28P)
$2,154
Out of stock
Description
The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.
24 Ports 2.5GE PoE for downlink
4 Ports 10G SFP+ for uplink
PoE IEEE802.3af/at/bt options, power budget 475W
6kV surge protection on all 2.5G ethernet ports
Supports LACP 802.3ad Link Aggregation
Supports Static Routing & Loopback Detection
Supports Spanning Tree Protocol (STP/RSTP/MSTP)
AAA support for RADIUS/TACACS+
Supports D-Link Safeguard Engine
Manage through the Nuclias Network Controller
Additional information
| Weight | 4.33 kg |
|---|---|
| Dimensions | 0.0000 × 0.0000 × 0.0000 cm |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Active link detection | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Switching capacity | 200 Gbit/s |
| Forwarding rate | 148.81 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| Password protection | Yes |
| Multicast support | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 592.19 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 475 W |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 4.17 kg |
