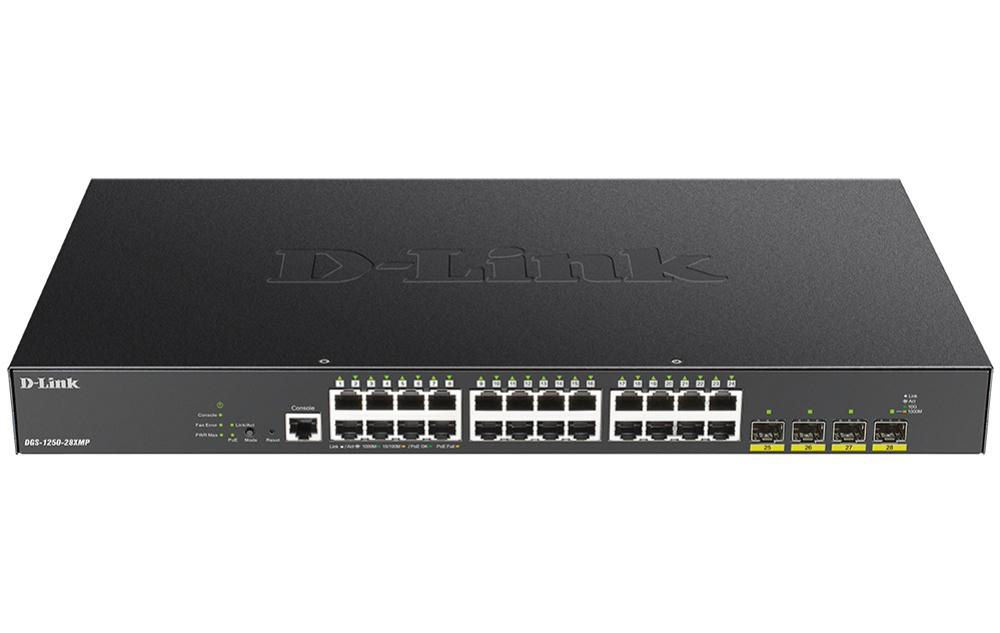

D-Link 28-Port Gbit Managed PoE Switch (DGS-1250-28XMP)

$1,520

Out of stock

SKU: DGS-1250-28XMP Categories: , Brand:

Description

The D-Link DGS-1250 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, high port density, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1250 Series provides a cost-efficient and flexible solution for expanding any business network.

RJ-45 Ports: 24

RJ-45 Speeds: 10/100/1000

Combo Ports (RJ-45 + SFP): 24 PoE + 4 (10G) SFP+ Ports

SFP (Small Form-Factor Pluggable) Ports : 4

SFP Speeds: 10G

PoE++ (60w) or higher available?: Yes

Number of PoE Ports: 24

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 95.24 Mpps

Switching Capacity in Gigabits per Second (Gbps): 128 Gbps

Web-based GUI: Yes

Redundant Power Supply: No

19″ Rack Mountable: Rack-mount

Additional information

Weight 5.2 kg
Dimensions 56.5000 × 39.5000 × 9.0000 cm
Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

MIB support

RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

4

Console port

RJ-45

Networking standards

IEEE 802.3af, IEEE 802.3at

10G support

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Cable types supported

Cat5, Cat5e

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Virtual LAN features

Voice VLAN

Number of VLANs

4094

Fiber ethernet cabling technology

100BASE-FX, 1000BASE-LHX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX

Switching capacity

128 Gbit/s

Forwarding rate

95.24 Mpps

MAC address table

16000 entries

Store-and-forward

Yes

Static route

Yes

Number of static routes

124

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

12 MB

DHCP features

DHCP server, DHCP snooping

Access Control List (ACL)

Yes

Access Control List (ACL) rules

768

IGMP snooping

Yes

Security algorithms

EAP, LEAP, MD5, PEAP, SSH, SSL/TLS, TTLS

Loop protection

Yes

IP-MAC-Port binding

Yes

Queue scheduling algorithms

Weighted Round Robin (WRR)

Multicast support

Yes

Rack mounting

Yes

Product colour

Black

LED indicators

Activity, Link, Power, Speed

Electromagnetic compatibility

CE A, VCCI A, FCC A, IC, BSMI

Memory type

DDR3-SDRAM

Internal memory

2048 MB

Flash memory

64 MB

Noise level

50.8 dB

Firmware upgradeable

Yes

Mean time between failures (MTBF)

463430.16 h

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Power consumption (max)

455.1 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE) power per port

15.4 W

Total Power over Ethernet (PoE) budget

370 W

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Heat dissipation

1551.891 BTU/h

Width

440 mm

Depth

250 mm

Height

44 mm

Weight

3.46 kg

Package width

393 mm

Package depth

563 mm

Package height

89 mm

Package weight

4.76 kg

Shipping (inner) case height

42.8 cm

Shipping (inner) case width

47.8 cm

Shipping (inner) case length

58.5 cm

Shipping (inner) case net weight

19.3 kg

Products per shipping (inner) case

5 pc(s)

Pallet gross weight (air)

426 kg

Master (outer) cases per pallet (air)

16 pc(s)

Products per pallet (air)

80 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

184.7 cm

Pallet gross weight (sea)

426 kg

Master (outer) cases per pallet (sea)

16 pc(s)

Products per pallet (sea)

80 pc(s)

Pallet height (sea)

184.7 cm

Shipping (inner) case gross weight

25.5 kg

Certification

CB, UL, BSMI, CCC

Harmonized System (HS) code

85176990
