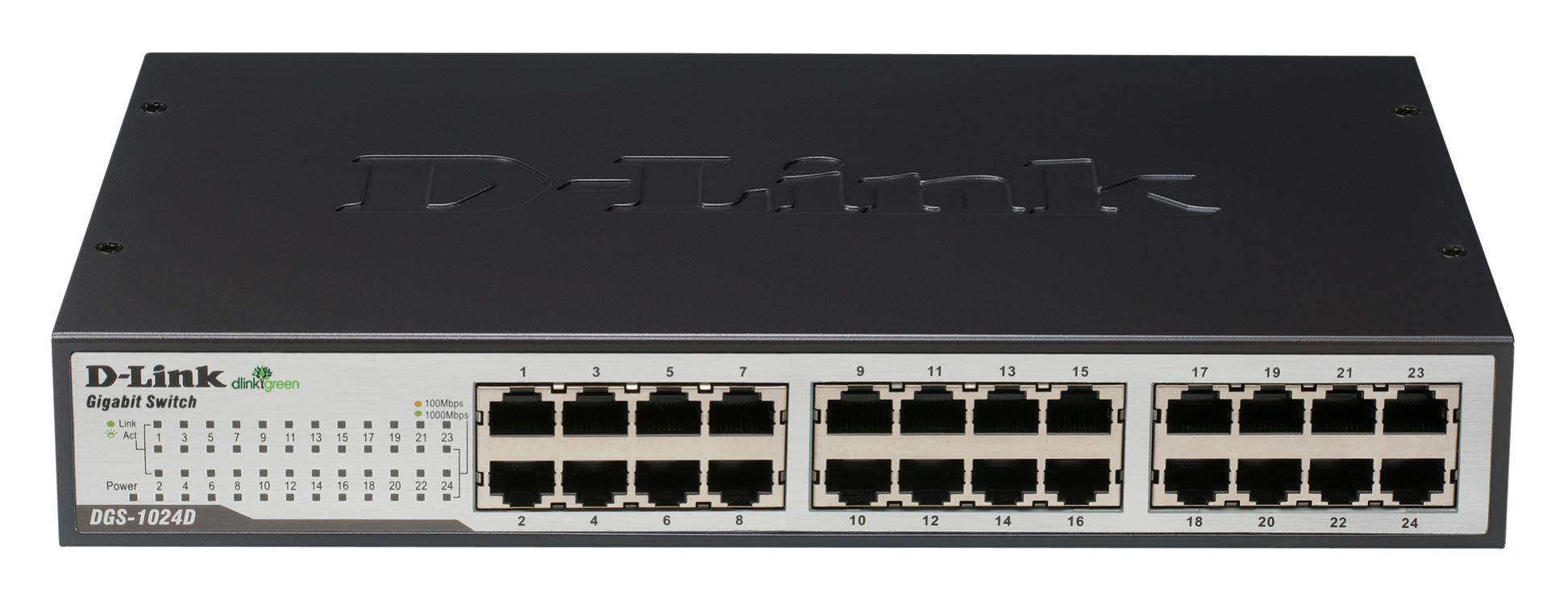

D-Link 24-Port Unmanaged Desktop Switch (DGS-1024D)

$195

Out of stock

SKU: DGS-1024D Categories: , Brand:

Description

The D-Link 16-Port Gigabit Unmanaged Desktop or Rackmount Switch and the 24-Port Gigabit Unmanaged Desktop or Rackmount Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

RJ-45 Ports: 16

RJ-45 Speeds: 10/100/1000

Combo Ports (RJ-45 + SFP): 24 Gigabit Ports

SFP (Small Form-Factor Pluggable) Ports : 0

SFP Speeds: 0

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 14,880 pps per port

Switching Capacity in Gigabits per Second (Gbps): 48 Gbps

Web-based GUI: No

Redundant Power Supply: No

19″ Rack Mountable: Desktop or Rack Mount Placement

DIN-Rail Mountable: No

Stacking Capacity (Physical): No

Stacking Capacity (Virtual): No

IPv4 Routing: No

IPv6 Routing: No

DHCP (Dynamic Host Configuration Protocol) Server Screening: No

Ruggedized: No

Additional information

Weight 2.7 kg
Dimensions 33.0000 × 18.0000 × 11.0000 cm
Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

AC-in jack

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

10BASE-T, 100BASE-T, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

MAC address auto-learning supported

Yes

MAC address auto-aging supported

Yes

Switching capacity

48 Gbit/s

Forwarding rate

35.71 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Number of queues

8

Jumbo frames support

Yes

Jumbo frames

10000

Packet forwarding rate (1 Gbps)

14880 pps

Packet forwarding rate (100 Mbps)

148800 pps

Packet forwarding rate (10 Mbps)

1488000 pps

Packet buffer memory

0.5 MB

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product colour

Black

Housing material

Metal

LED indicators

Activity, Link, Power, Speed

Electromagnetic compatibility

ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC

Noise level

0 dB

Mean time between failures (MTBF)

863100 h

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Input current

0.3 A

Power consumption (max)

13.3 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Heat dissipation

45.35 BTU/h

Width

280 mm

Depth

180 mm

Height

44 mm

Weight

1.3 kg

Certification

cUL/UL CE LVD CCC CB BSMI
