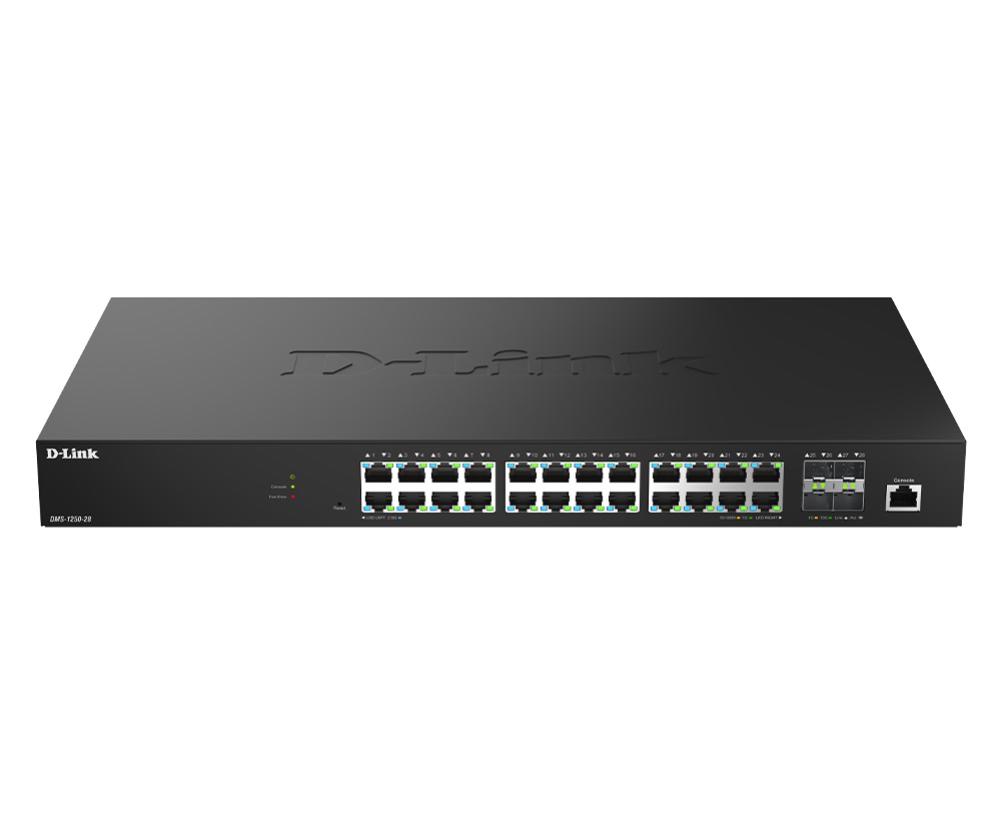

D-Link 24-Port MGigabit Smart Managed (DMS-1250-28)

$1,197

Out of stock

SKU: DMS-1250-28 Categories: , Brand:

Description

The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.

24 Ports 2.5GE for downlink

4 Ports 10G SFP+ for uplink

6kV surge protection on all 2.5G ethernet ports

Supports LACP 802.3ad Link Aggregation

Supports Static Routing

Supports Loopback Detection

Supports Spanning Tree Protocol(STP/RSTP/MSTP)

AAA support for RADIUS/TACACS+

Supports D-Link Safeguard Engine

Manage through the Nuclias Network Controller

Additional information

Weight 4.33 kg
Dimensions 52.0000 × 36.5000 × 9.5000 cm
Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

Traffic classification

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

SFP+ module slots quantity

4

Power connector

AC-in jack

Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z

Port mirroring

Yes

Flow control support

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

4096

Switching capacity

200 Gbit/s

Forwarding rate

148.81 Mpps

MAC address table

16000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

16 MB

DHCP features

DHCP server, DHCP snooping

Access Control List (ACL)

Yes

IGMP snooping

Yes

MAC address filtering

Yes

Loop protection

Yes

Password protection

Yes

Multicast support

Yes

Rack mounting

Yes

Stackable

Yes

Product colour

Black

LED indicators

Yes

Number of fans

2 fan(s)

Internal memory

512 MB

Flash memory

32 MB

Power source

AC

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Power consumption (max)

39.73 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Width

440 mm

Depth

250 mm

Height

44 mm

Weight

3.47 kg
