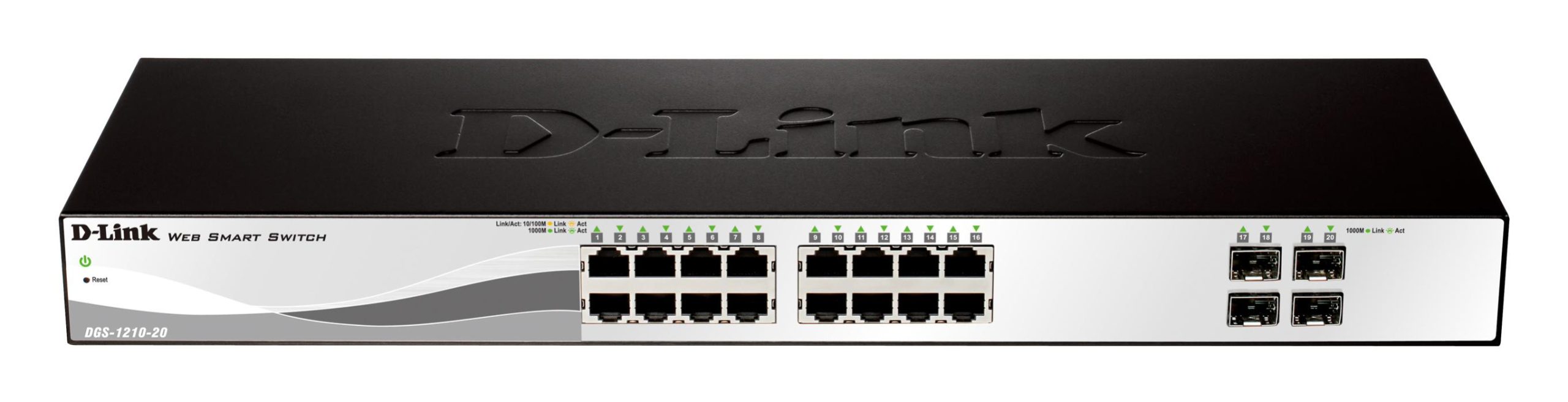

D-Link 20-Port Smart Managed Switch (DGS-1210-20)

$322

Out of stock

SKU: DGS-1210-20 Categories: , Brand:

Description

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

RJ-45 Ports: 16

RJ-45 Speeds: 1Gbps

Combo Ports (RJ-45 + SFP): 16 t RJ45 + 4SFP

SFP (Small Form-Factor Pluggable) Ports : 4

SFP Speeds: 1G

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 29.8

Switching Capacity in Gigabits per Second (Gbps): 40

Web-based GUI: Yes

Redundant Power Supply: No

19″ Rack Mountable: Yes

Additional information

Weight 3.2 kg
Dimensions 36.0000 × 33.0000 × 7.0000 cm
Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

MIB support

Yes

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

4

Power connector

AC-in jack

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

Auto-negotiation

Yes

VLAN support

Yes

Number of VLANs

256

Switching capacity

40 Gbit/s

Forwarding rate

77.4 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10000

Packet buffer memory

4.1 MB

DHCP features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

MAC address filtering

Yes

Loop protection

Yes

Multicast support

Yes

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product colour

Black

LED indicators

Yes

Memory type

DDR3-SDRAM

Internal memory

256 MB

Flash memory

32 MB

Noise level

0 dB

Mean time between failures (MTBF)

1087100 h

Power source

AC

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Power consumption (max)

13.08 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Heat dissipation

44.62 BTU/h

Width

280 mm

Depth

180 mm

Height

44 mm

Weight

1.75 kg
