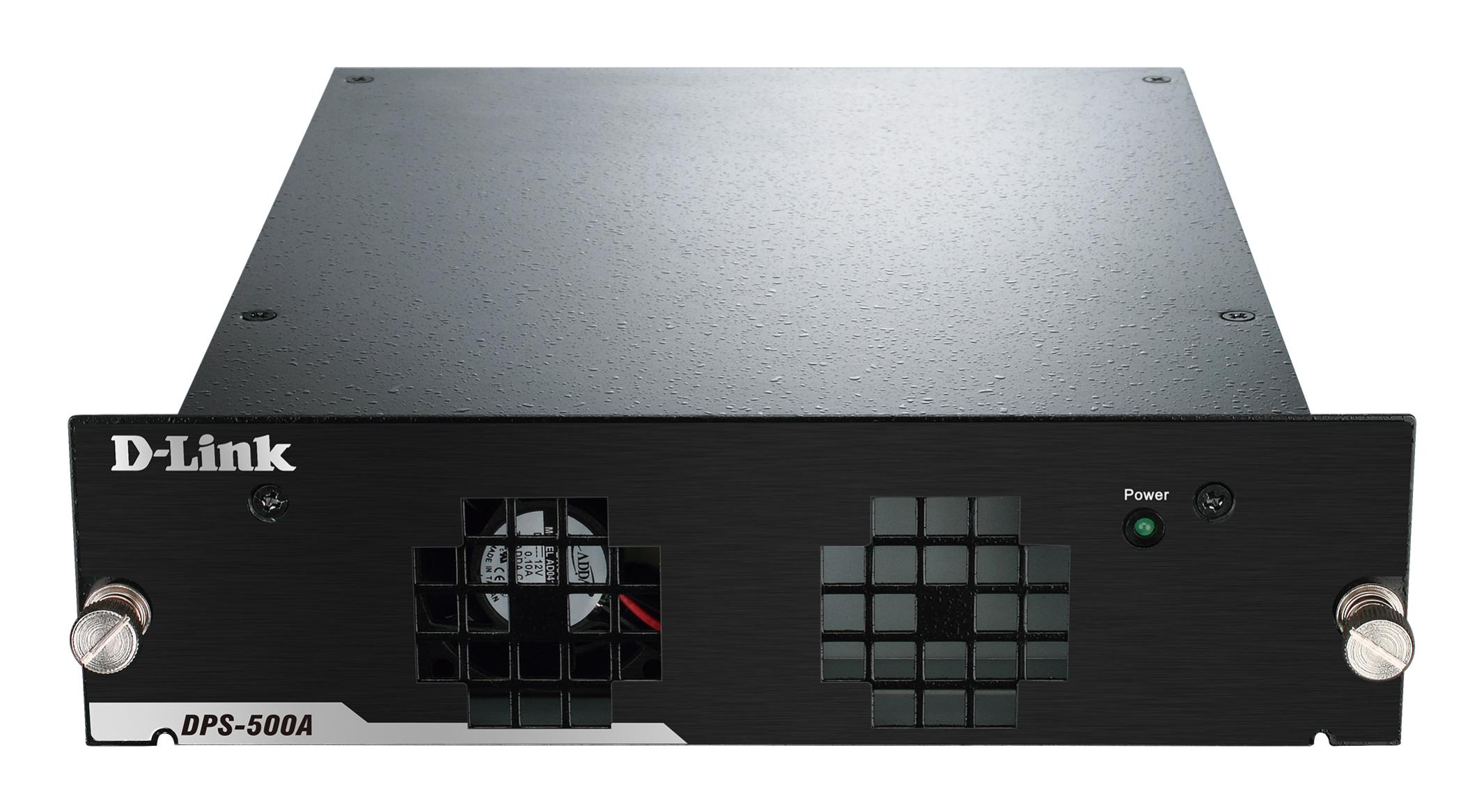

D-Link 140W Redundant Power Supply (DPS-500A)
$928
Out of stock
Description
The DPS-200A, DPS-500A and DPS-500DC are modular redundant power supplies which can be installed as independent power supply units or placed inside a DPS-800 Rack-mount chassis. The chasses are designed for mounting in a standard 19-inch equipment rack. Multiple power supplies can be placed inside a chassis, from which they can connect to the switches mounted in the same rack.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 44.0000 × 25.2000 × 11.4000 cm |
| Product type | Power Supply |
| Product colour | Black |
| Mean time between failures (MTBF) | 400000 h |
| Compatibility | |
| Total power | 140 W |
| AC input voltage | 90 – 264 V |
| AC input frequency | 47 – 63 Hz |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -45 – 85 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 172 mm |
| Depth | 257 mm |
| Height | 43 mm |
| Weight | 1.51 kg |
| Package width | 246 mm |
| Package depth | 436 mm |
| Package height | 109 mm |
| Package weight | 2.8 kg |
| Harmonized System (HS) code | 85177900 |
| Shipping (inner) case length | 46.7 cm |
| Shipping (inner) case width | 45.7 cm |
| Shipping (inner) case height | 28.4 cm |
| Shipping (inner) case net weight | 11 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Pallet gross weight (air) | 211 kg |
| Master (outer) cases per pallet (air) | 16 pc(s) |
| Products per pallet (air) | 64 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 127.1 cm |
| Pallet gross weight (sea) | 306.5 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 96 pc(s) |
| Pallet height (sea) | 183.9 cm |
| Shipping (inner) case gross weight | 12 kg |
