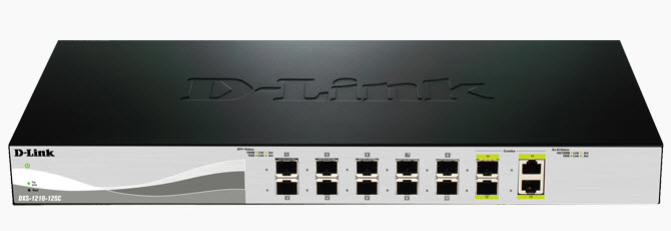

D-Link 12-Port 10GB Smart Fibre Switch (DXS-1210-12SC)

$2,394

Out of stock

SKU: DXS-1210-12SC Categories: , Brand:

Description

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. With high performance and low latency, the DXS-1210 Series fulfills the needs for virtualization, cloud services, and server-to-server applications, making it perfect for Small-to-Medium-Business (SMB) customers.

RJ-45 Ports: 2

RJ-45 Speeds: (100M/1G/2.5G/5G/10G)

Combo Ports (RJ-45 + SFP): 10 SFP+ and 2 BASE-T (100M/1G/2.5G/5G/10G)/ SFP+ Combo Ports

SFP (Small Form-Factor Pluggable) Ports : 12

SFP Speeds: 1G / 10G

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 178.56

Switching Capacity in Gigabits per Second (Gbps): 240

Web-based GUI: Yes

Redundant Power Supply: No

19″ Rack Mountable: Yes

Additional information

Weight 5 kg
Dimensions 51.0000 × 31.0000 × 9.5000 cm
Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

MIB support

Yes

Combo SFP ports quantity

2

SFP+ module slots quantity

10

Fiber optic connector

SFP+

Console port

RJ-45

Networking standards

IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az

10G support

Yes

Cable types supported

Cat6a, Cat7

Port mirroring

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

Ethernet LAN data rates

1000,5000,100,2500,10000 Mbit/s

VLAN support

Yes

Number of VLANs

4094

Switching capacity

240 Gbit/s

Forwarding rate

178.56 Mpps

MAC address table

32000 entries

Store-and-forward

Yes

Number of queues

8

Jumbo frames support

Yes

Jumbo frames

10000

DHCP features

DHCP client, DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

Loop protection

Yes

Password protection

Yes

Multicast support

Yes

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product colour

Black, Silver

LED indicators

Yes

Number of fans

2 fan(s)

Noise level

46.3 dB

Power source

AC

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Power consumption (max)

27.4 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Width

440 mm

Depth

210 mm

Height

44 mm

Weight

2.72 kg

Quick start guide

Yes

Certification

CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
