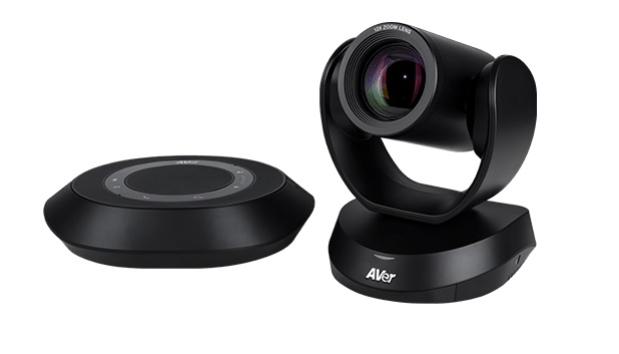

AVer VC520PRO2 FHD Camera + Speakerphone (VC520PRO2)

Description

The VC520 Pro2 is an expert-level conferencing system. Equipped with an 18X total zoom, advanced AVer SmartFrame, IP video streaming, single USB installation, and an extended speakerphone solution, the VC520 Pro2 brings you an extraordinary video conferencing experience.
Specifications
Camera
Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
Smart Gallery* function offers great visibility for individual participant in the meeting room
Innovative Preset Framing: Follow presenter based on preset areas
True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 24X* total zoom (12X optical zoom)
Field of view(D/H/V): 84.5°/76°/48°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
*Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
Motorised Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement
Video Format
YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocols: RTSP, RTMP
Audio Format
AAC-LC
Network protocol: RTSP, RTMP
Speakerphone
Full duplex microphone array with echo cancellation
Advanced noise suppression
Dual-omnidirectional microphone array
3.5 mm phone-in jack
3.5 mm line out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
Bridge phone-in and USB into one call
Security: Kensington slot
*Only available for the VC520 Pro2 Microsoft Teams edition
Connectivity
12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)
USB
UVC 1.5 requires an additional firmware upgrade. Please contact technical support for more details.
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0
UVC1.5*
Control
IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp 2
System Requirements
Windows® 7/10/11
Mac OS X 10.14 or higher
Chromebox 3 version 94.0.4606.114 or later
Hardware Specs
3.2 GHz Intel® Core™ i5-4460 Processor or higher
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0 port
Web page browser requirement
Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support
Free Applications for Meeting Collaboration (Windows® and Mac)
EZManager 2: Camera Central Management software
Remotely group FW/SW upgrades, control the camera, and configure settings
PTZApp 2
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
EZLive
Real-time streaming / annotating / snapshots / video recording
Compatible Applications – Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit
**Specifications may vary depending on countries and are subject to change without notice.

1080p PTZ Conference Camera with POE IP video streaming

Support Video and Audio with One USB Cable

Spot Every Detail with an 18X Total Zoom

Improve Meeting Safety & Efficiency with SmartFrame

Livestream Videos Anytime, Anywhere

Zoom and ClickShare Certified
