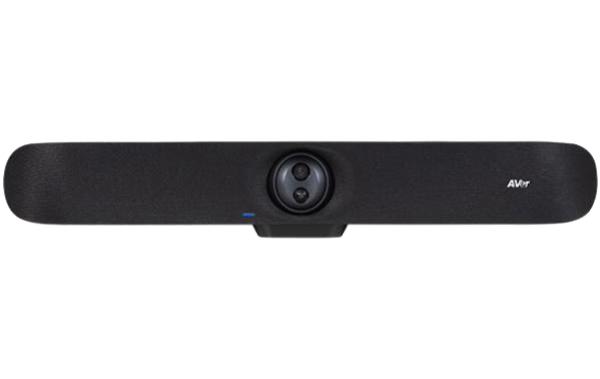

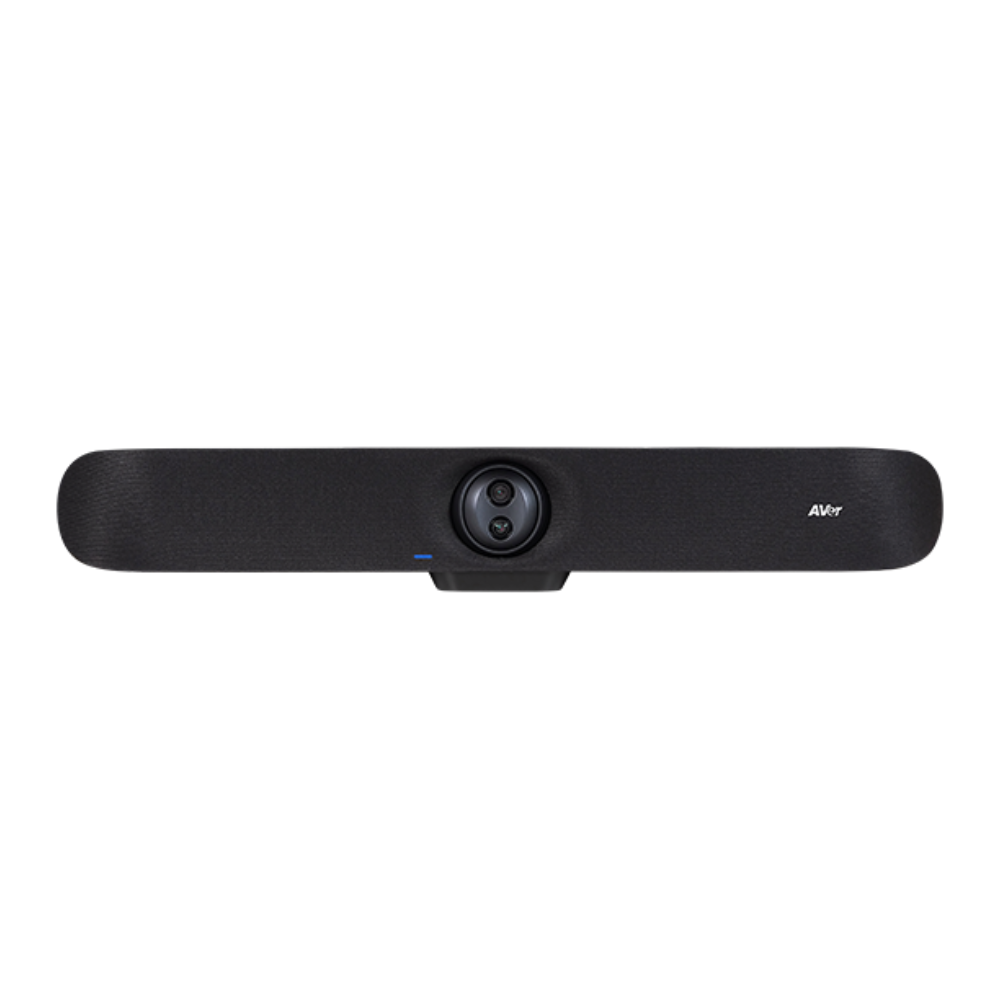

AVer VB350 4K Dual Lens PTZ Video Bar (VB350)

Description

With a streamlined design, dual 4K lenses, seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.
Specifications
Camera
4K dual-lens technology delivers a wide 113° field of view (FOV) with 18X zoom
4K 3X Varifocal Lens: FOV (D/H/V) 92°/81°/50°
4K Fixed Lens: FOV (D/H/V) 113°/105°/71°
Image Sensor: 1/2.8” 4K Sony Exmor CMOS
Frame Rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 3264 x 1836, 2560 x 1440, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps
Adjustable Audio Fence: Freedom to define audio pickup range (wide/medium/narrow)
SmartFrame & SmartSpeaker: Automatic tracking and FOV adjustment to fit all participants and focus on the speaker
Presentation Mode: Voice-triggered tracking on both defined areas and speakers
Configure the Smart Gallery function via Room Management (PTZApp 2) to enhance visibility
Gesture Control for intuitive camera control
WDR, White Balance and more image settings via Room Management (PTZApp 2)
Minimum Focus Distance: 100 cm
People Counting API: Enterprises and third-party software providers can obtain people-counting and meeting-interval data tor better understand meeting space usage
Motorised Pan and Tilt Movement
Viewing Area: Pan: 165°, Tilt: 101°
10 Camera Presets
Audio
Beamforming Elements: 14
Pickup Range: 10 Meters
Volume up to 96 dB SPL at 1/2 Meters
Acoustic Echo Cancellation (AEC): Yes
Noise Suppression: Yes
HDMI
One Cable Solution: Built-in USB 3.1 (Gen 1) to HDMI Adapter
4K HDMI output to TV (Need to install HDMI adapter driver on Windows® 7 and macOS®)
Video Format
Video Format: YUV, YUY2, MJPEG
Network Video Compression Format: H.264
Network Protocols: RTSP, RTMP
USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB Video), UAC 1.0 (USB Audio)
Connectivity
12V/5A Power Adapter
Mini DIN 6 for RS-232 Connection
USB: USB 2.0 Type A x 3, USB 3.1 Type B (Backward compatible with USB 2.0) x 1
HDMI Out: 1
Phone In: 1
Network: RJ-45 x 1
Audio In/Out: RJ-45 x 1
Control
IR Remote Control
Supported Web Browsers: Chrome™
VISCA / Pelco P / Pelco D via RS-232 / VISCA over IP
UVC/UAC Plug-and-Play
Room Management (PTZApp 2)
System Requirements
Software
Windows® 7/10/11
mac OS® X 10.14 or later
Google Chromebook™ (Chrome OS 94.0.4606.114 or later)
Hardware
3.2 GHz Intel® Core™ i5-4460 Processor
4 GB RAM or more
USB 3.1 Port (Backward compatible with USB 2.0)
Software Tools
Room Management (PTZApp 2) – Supports Windows® 7 or later, macOS® 11.6 or later
Enterprise Management (PTZ Management) – Supports Windows® 10 or later
EZManager 2 – Supports Windows® 7 or later
EZLive – Supports Windows® 7 or later, macOS® 10.13 or later
Package Contents
VB350
Power Adapter & Cable
USB 3.1 Type B to Type A Cable (3 m)
USB 3.1 Type A to Type C Adapter
QR Code Card
Wall-mount Bracket
Tripod Screws
Remote Control
Wall-mount Drill Paper
Compatible Applications – Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit

Certified for MS Teams and Zoom

Hybrid 18X Zoom Captures Farther and Clearer

Stable Lens Switching Enables Inclusive and Engaging Hybrid Teamwork

Conversation View Reduces Camera Movement

Audio Fence Eliminates Background Noise

14-Microphone Array Delivers Lifelike Audio
