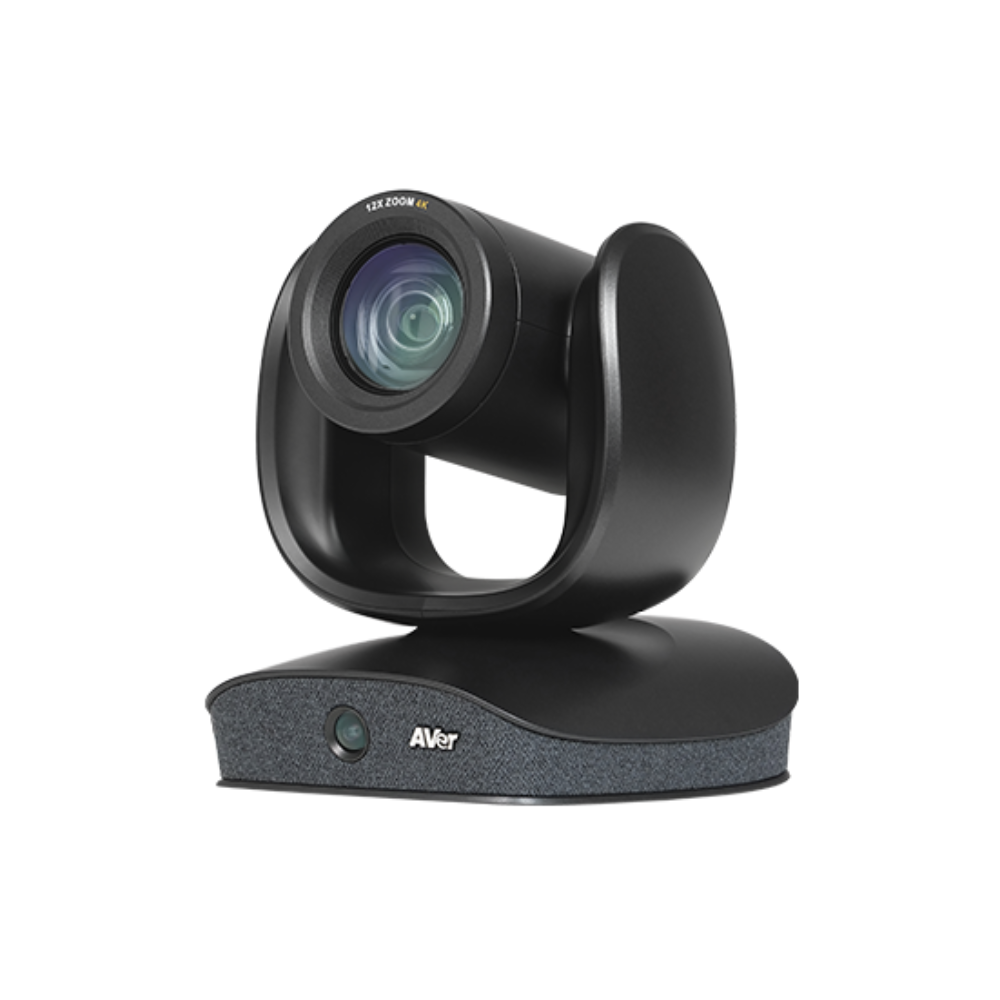

AVer CAM570 4K Dual Lens Audio Tracking Camera for Medium and Large Rooms (CAM570)

Description

AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95°FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.
Specifications
Dual Camera
PTZ optical zoom lens
Image Sensor: 1/2.8” 4K Sony Exmor CMOS
Frame Rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
36X Zoom*: 12X optical; 3X digital zoom
Viewing Angles: DFOV 90°; HFOV 78°; VFOV 50°
Lens Focal Length: 3.4mm (Wide) ~ 40.3mm (Tele)
Lens F#: 1.8 (Wide) ~ 3.6 (Tele)
Wide Dynamic Range (WDR): Superb backlight compensation
Minimum Focus Distance: 1.5 m
Viewing Area: Pan: ±170°; Tilt: +90° (up) / -30° (down)
Preset Positions: 10 via IR remote, 128 via RS-232
Image flip and image mirror
Secondary fixed lens (AI lens)
Image Sensor: 1/2.5” 4K Sony Exmor CMOS
Frame rates and resolution set according to PTZ lens settings
Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°
*Please use Room Management (PTZApp 2) to set up 36X zoom
*Please don’t put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.
*When the resolution is set to 4K or the frame rate to 60fps, features including PIP, Image Flip, Image Mirror, and OSD (On Screen Display) Setting will be disabled automatically.
Audio Sensor
Audio pick-up range: 10m, ±60°
3 pairs of sensor, each composed of 4 sensors
* The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.
Connectivity
USB type-B 3.1 connector, backward compatible with USB 2.0
12V/2A DC jack power adapter
Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain)
IP (RJ-45)
HDMI
Audio in* (1Vrms input)
*To avoid tracking the speakerphone, please insert speakerphone’s Line-out to CAM570’s Line-in port.
USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video)
Control
IR remote control
VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ-45)
UVC plug and play
WebUI: Browser IP access via Chrome. (Not support IE)
OSD setting: HDMI out to TV monitor
Room Management (PTZApp 2)
Software Tools
Room Management (PTZApp 2) – Supports Windows® 7 or later, macOS® 11.6 or later
Enterprise Management (PTZ Management) – Supports Windows® 10 or later
Cloud Management – Supports Chrome™ & Microsoft Edge browsers
EZManager 2 – Supports Windows® 7 or later
EZLive – Supports Windows® 7 or later
System Requirements
Windows® 7/10/11
Mac OS X 10.14 or later
Chromebox 3 version 94.0.4606.114 or later
Hardware Specs
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0
Compatible Applications
Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit
*For 4K UHD support, please check system/hardware requirements with your software application provider.
**Specifications may vary depending on countries and are subject to change without notice.

Built-in Audio Sensor Enables Audio Tracking

Dynamic Detection Optimizes Meeting Experience

Smart Gallery Delivers a Clearer View of Faces

Interact with CAM570 Using Touchless Gesture Control

Picture-in-Picture Displays Preferred Conference View
