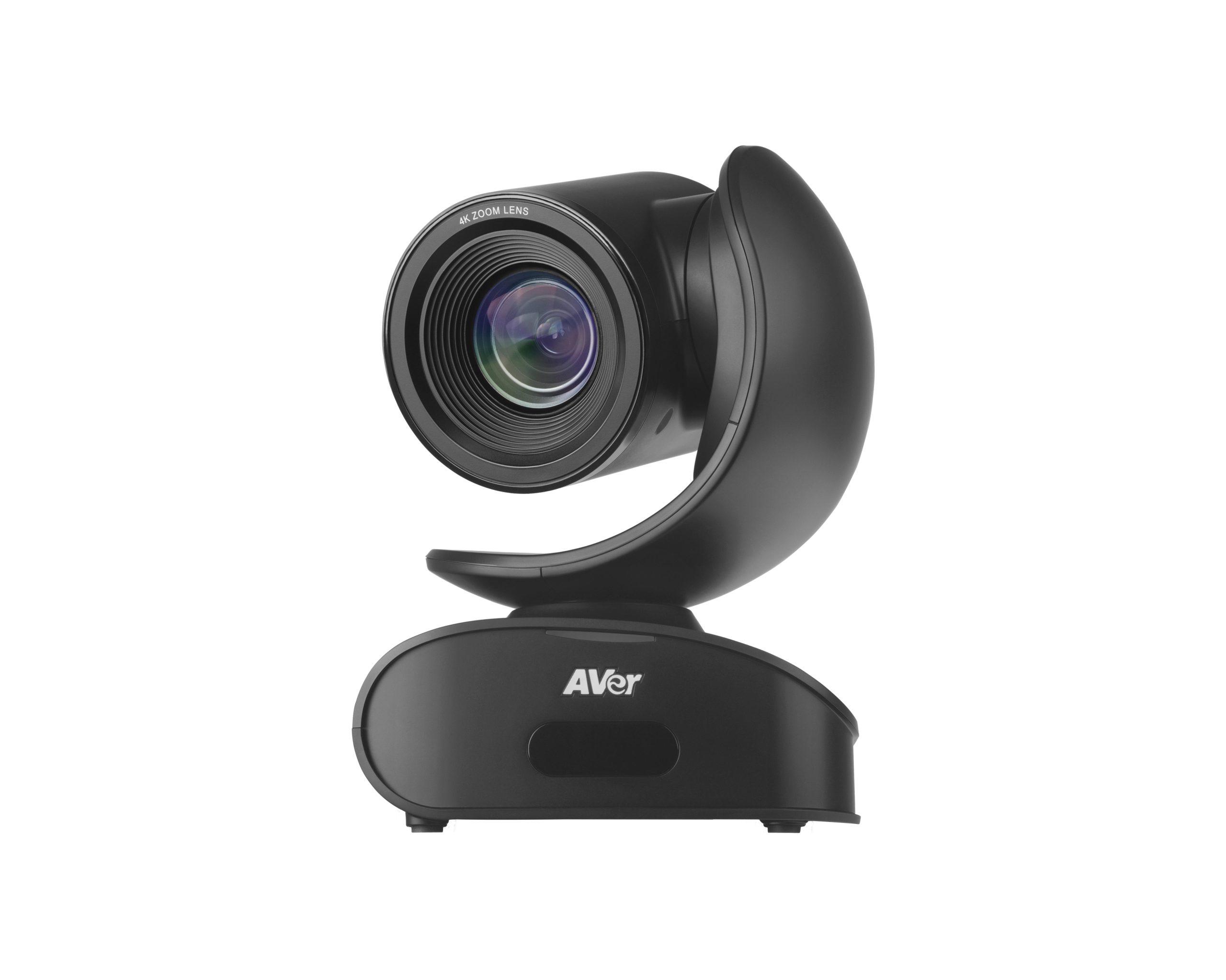

AVer CAM540 4K USB PTZ Camera (CAM540)

Description

The CAM540 brings AVer’s new SmartFrame auto-framing technology to 4K high definition video conferencing. With a wide field of view, the CAM540 is guaranteed to provide an incredible communication experience in your meeting room. AVer SmartFrame Gets Your Meeting Started Fast: The CAM540 delivers AVer’s latest camera technology to your meeting room with AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No more complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the CAM540 and SmartFrame.
Specifications
Camera
Ultra-crystal clear image support up to 4K; CMOS Sony 4K
Frame rate: 4K 30fps, 1080p , 720p , 640×480, 320×240 at 60, 30, 15fps
SmartFrame: Automatic FOV adjustment to fit all participants
16X Zoom (4X optical zoom + 4X digital zoom)
Auto focus: minimum working distance 1 meter
86° Wide field of view
Back light compensation and 2D noise reduction technology for optimizing light balance in different conditions
Standard tripod screw holes
Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
Motorised Pan and Tilt Movement
Pan: ±160°
Tilt: +90° (up) -30° (down)
10 camera presets (through remote control)
Quiet and smooth pan and Tilt movement
Connectivity
12V power adaptor
Mini DIN6 for RS232 connection
USB Type C connector
USB
2.0, 3.1 Gen1
UVC (USB Video Class) 1.1
Control
IR remote control
VISCA/pelco P/pelco D via RS232
UVC/ plug-and play
Room Management (PTZApp 2)
System requirement*
Windows 7/10/11
Mac OS X 10.14 or higher
Chromebox 3 version 94.0.4606.114 or later
Hardware Spec*
2.4GHz Intel® Core 2 Duo processor
2GB RAM or more
USB 3.1 Gen1 port
Software Tools
Room Management (PTZApp 2) – Support Windows® 7 or later, macOS® 11.6 or later
Package contents
Camera
Remote control
Power adapter
USB3.1 type-C to type-A (6ft)
USB3.1 type-A to type-C adapter
Quick-start guide
Metal mount, tripod screw
Battery
Compatible Applications
Adobe Connect, Blue Jeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangout, GoToMeeting™, Intel® Unite™, Microsoft® Lync™, Skype™,Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit, ZOOM

4K UHD PTZ Conference Camera

FOV 86 degrees, 16X Total zoom

Motorised Pan and Tilt Movement – Pan: +/- 160 degree Tilt: +90 degrees (up) – 30 degrees (down) with 10 camera presets (through remote control)

Ideal for Mid to Large meeting rooms with up to 24 people / Up to 10 x 10m (33ft x 33ft)

AVer SmartFrame Gets Your Meeting Started Fast: SmartFrame maximises the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast

4K Ultra HD: The CAM540 supports a high-end Sony 4K CMOS that allows for 4K video to be captured at 30 frames per second, providing users with an unbelievably lifelike meeting experience

High Detail 16X Total Zoom: The CAM540 is built with cutting edge 16X total zoom capability. Bringing an unseen level of clarity to video conferencing

Analytics for Efficient Meeting Rooms: The CAM540 provides an analytics API so enterprises and third-party software providers can obtain people-counting data

Connectivity: 12V power adaptor, Mini DIN6 for RS232 connection, USB Type C connector

Package contents: Camera, Remote control, Power adapter, USB3.1 type-C to type-A (6ft), USB3.1 type-A to type-C adapter, Metal mount, tripod screw

Compatible Applications: Zoom, Adobe Connect, Blue Jeans, CyberLink U Meeting, Cisco WebEx, Google Hangout, GoToMeeting, Intel Unite, Microsoft Lync, Skype, Skype for Business

Camera: Ultra-crystal clear image support up to 4K. Frame rate: 4K, 1080p , 720p , 640×480, 320×240

Control funciton via: IR remote control, VISCA/pelco P/pelco D via RS232, UVC/ plug-and play, PTZapp
