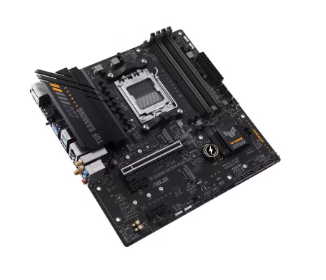

ASUS TUF A620M AM5 WiFi mATX (TUF GAMING A620M-PLUS WIFI)

$116

Out of stock

SKU: TUF GAMING A620M-PLUS WIFI Categories: , Brand:

Description

ASUS TUF GAMING A620M-PLUS WIFI AM5 4x DDR5, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2 Slots & 4x SATA, WiFi 6, Bluetooth 5.3 & Realtek 2.5Gb Ethernet , Realtek 7.1 Surround Sound

Additional information

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

6

RAID support

Yes

RAID levels

0, 1, 10

On-board graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

4

S/PDIF out connector

Yes

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of COM connectors

Yes

12V power connector

Yes

RGB LED pin header

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

Yes

PS/2 ports quantity

Yes

HDMI ports quantity

Yes

DisplayPorts quantity

2

Headphone outputs

Yes

Microphone in

Yes

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Motherboard chipset

AMD A620

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Cooling type

Passive

Windows operating systems supported

Windows 10 x64, Windows 11

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

Yes

Number of M.2 (M) slots

2

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Package weight

920 g

Width

244 mm

Depth

244 mm

Height

50 mm

Weight

800 g
