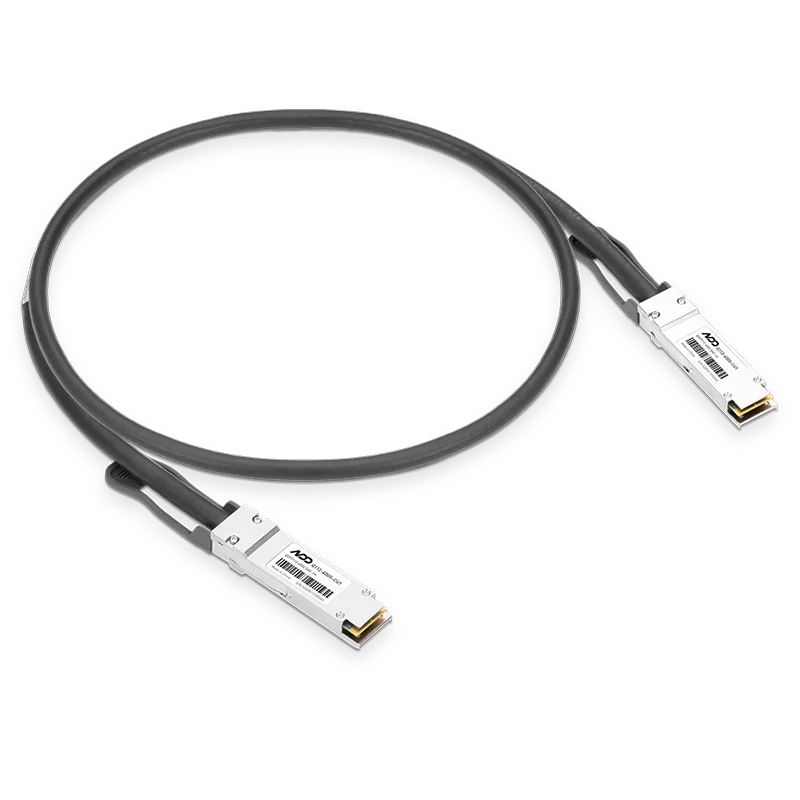

400G QSFP112 Passive DAC Cable for DGX Spark Stacking (Q112-400G-CU0-5)
$244
In stock
Description
400G QSFP112 Passive DAC Cable for DGX Spark Stacking
Key Features:
Suitable for NIC-to-NIC or DGX Spark Direct Connection.
0.5m 400G QSFP112 DAC for NVIDIA DGX Spark Dual-System Interconnect.
Max Power Consumption <0.25W.
Compliant with Hot Pluggable QSF112 MSA, IEEE 802.3ck, SFF-8636 Standard.
Compliant with RoHS Environmental Standard (Lead-free).
The 400G QSFP112 is a passive direct attach copper Quad Small Form-factor Pluggable solution achieving 400G transmission (hereafter referred to as QSFP112) is designed for high-density applications. The hot- pluggable transceiver integrates 4 transmitting and 4 receiving channels. QSFP112 to QSFP112 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions which support 400G standards with different data rate applications.
Additional information
| Weight | 0.23 kg |
|---|---|
| Product type | IT Hardware Accessory |
| Brand compatibility | Nvidia |
| Product colour | Black |
| Device type | Passive Direct Attach Copper (DAC) Cable |
| Connector Type | QSFP112 to QSFP112 |
| Data Transfer Rate | 400 Gbps (4x 100G PAM4) |
| Cable Length | 0.5 Metres |
| Wire Gauge | 30 AWG Passive Copper |
| Application | DGX H100 / DGX B200 / InfiniBand NDR & 400GbE High-Density Switch Stacking |
| Manufacturer Warranty | NVIDIA 1-Year Limited Warranty |
