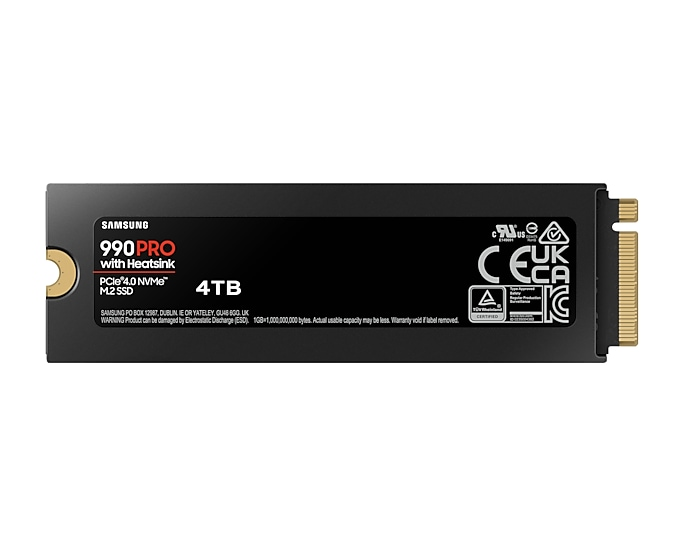

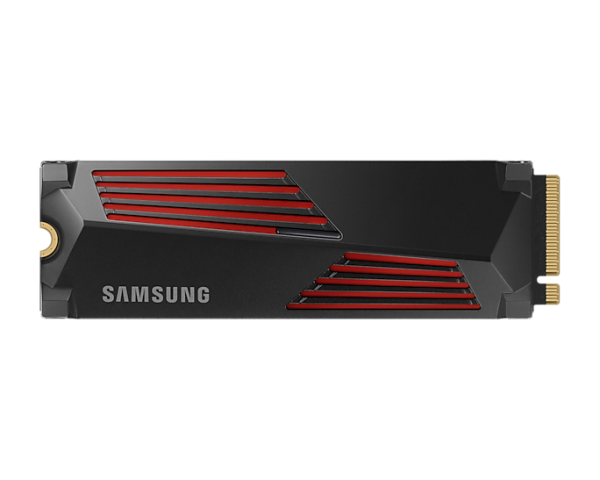

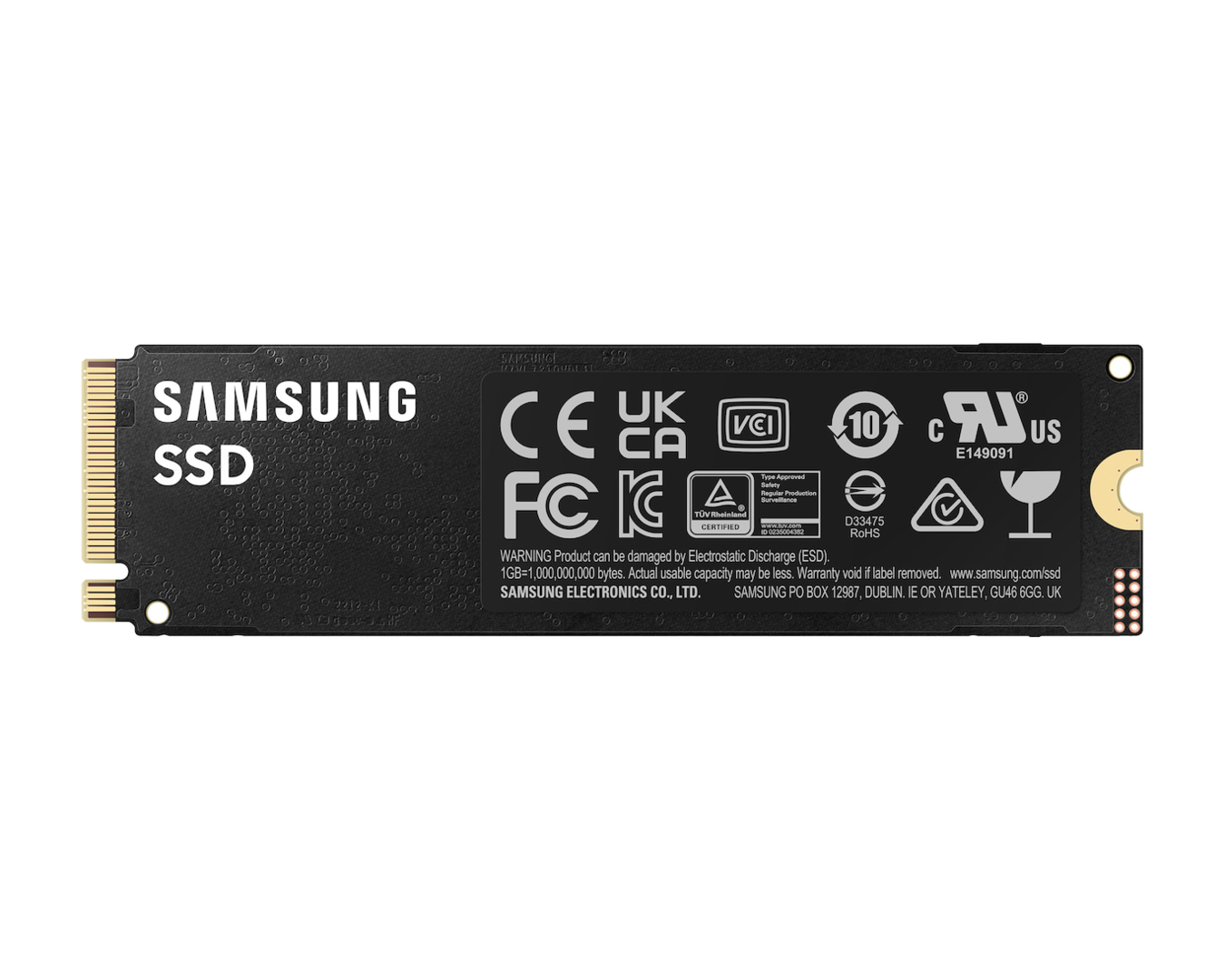

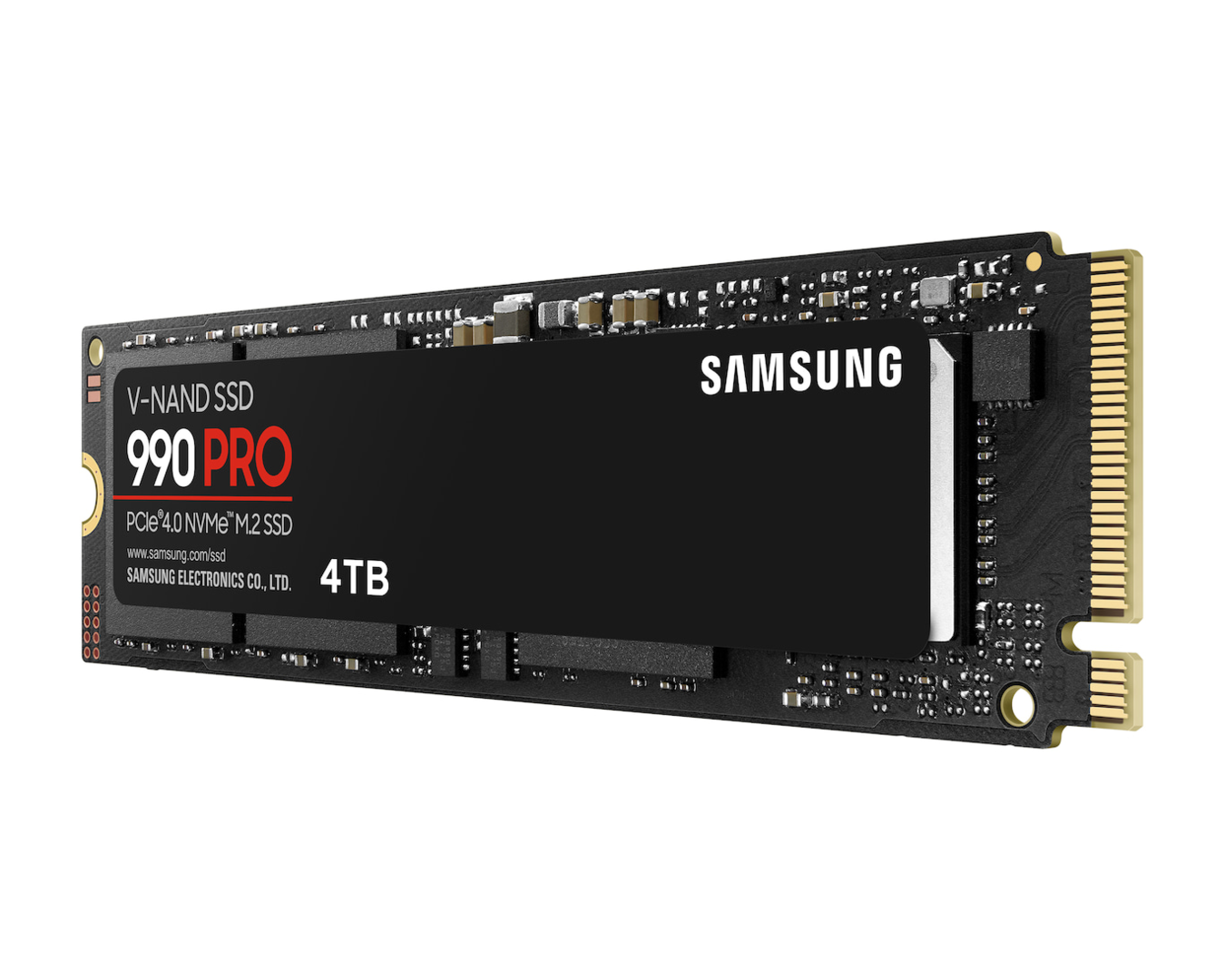

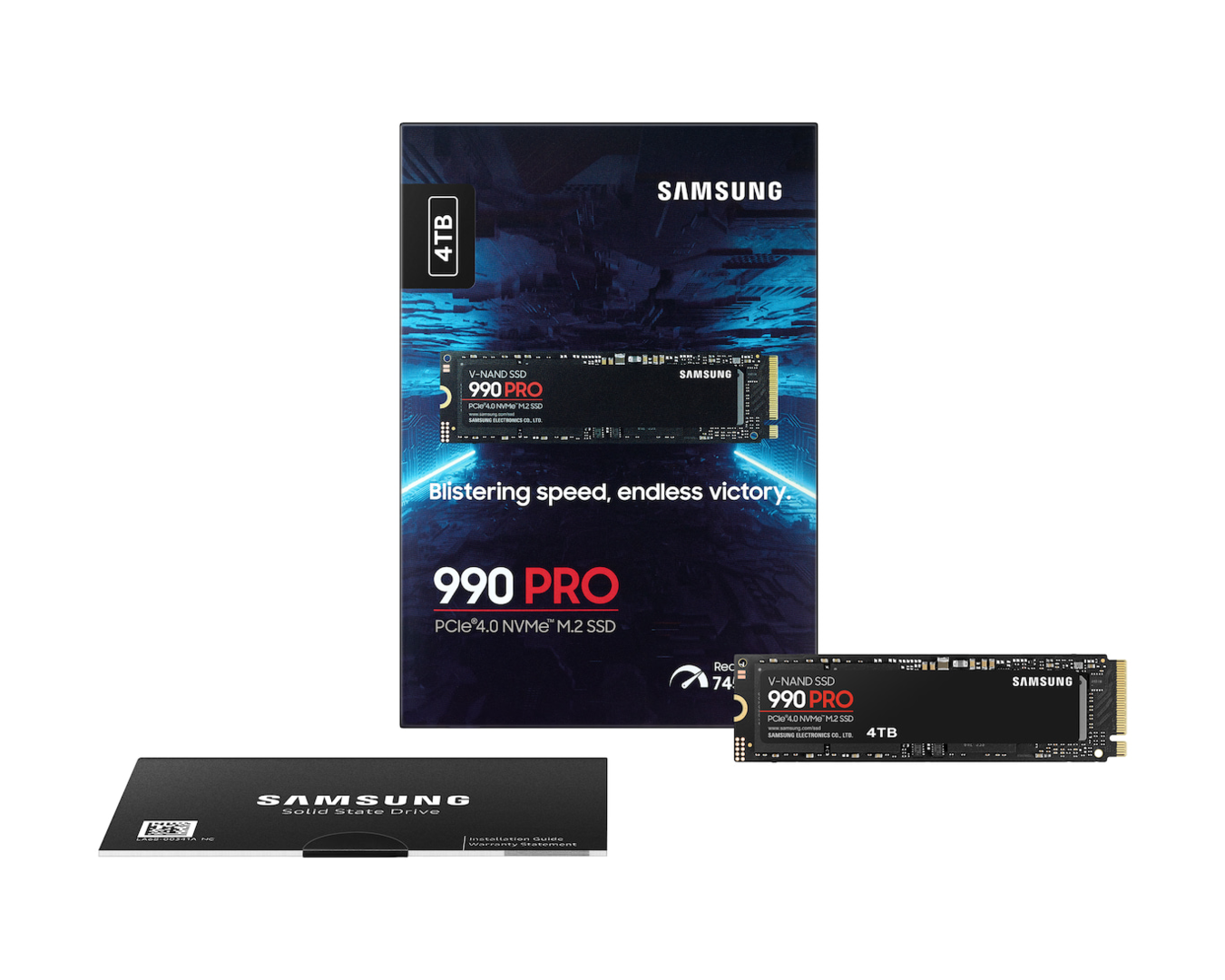

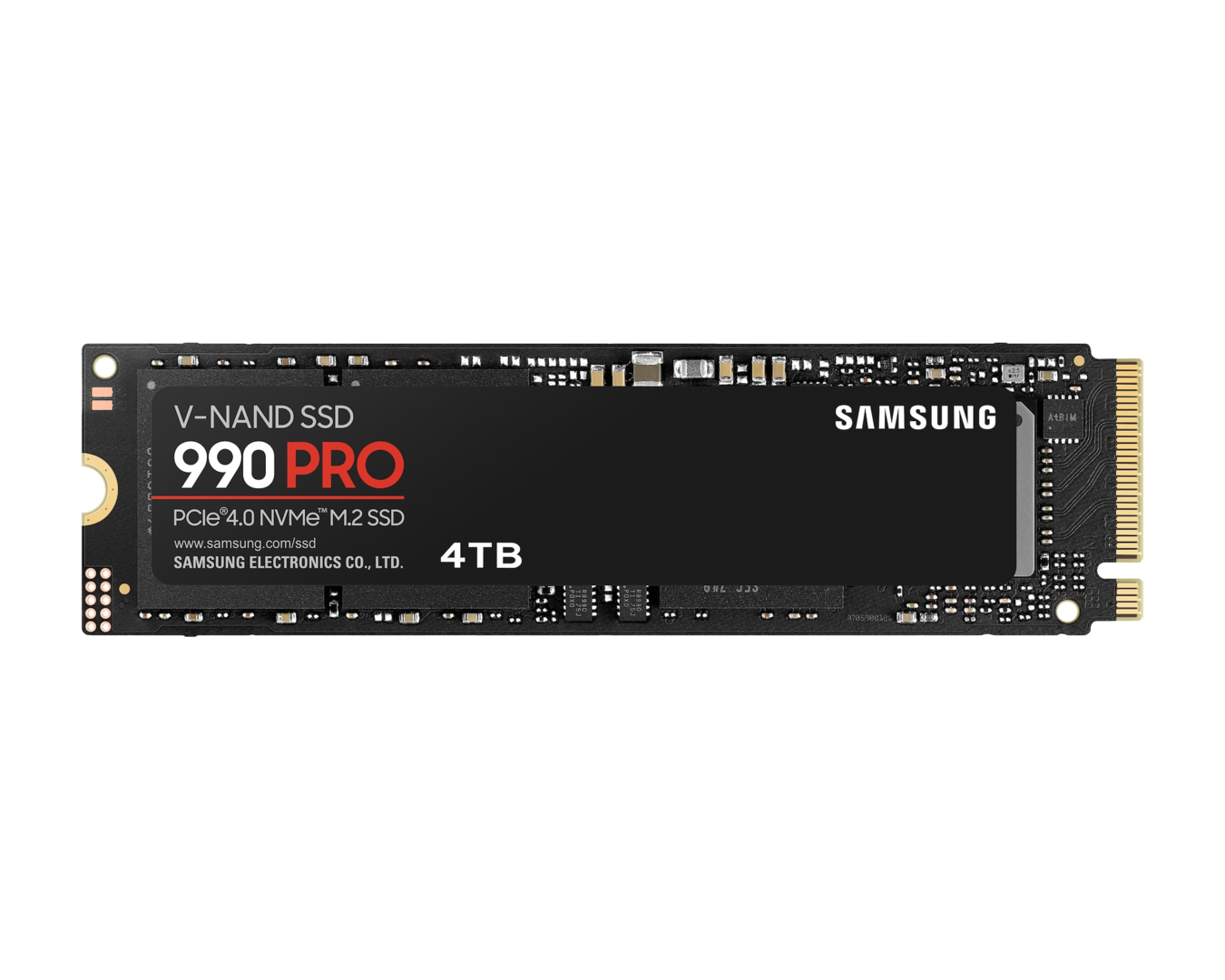

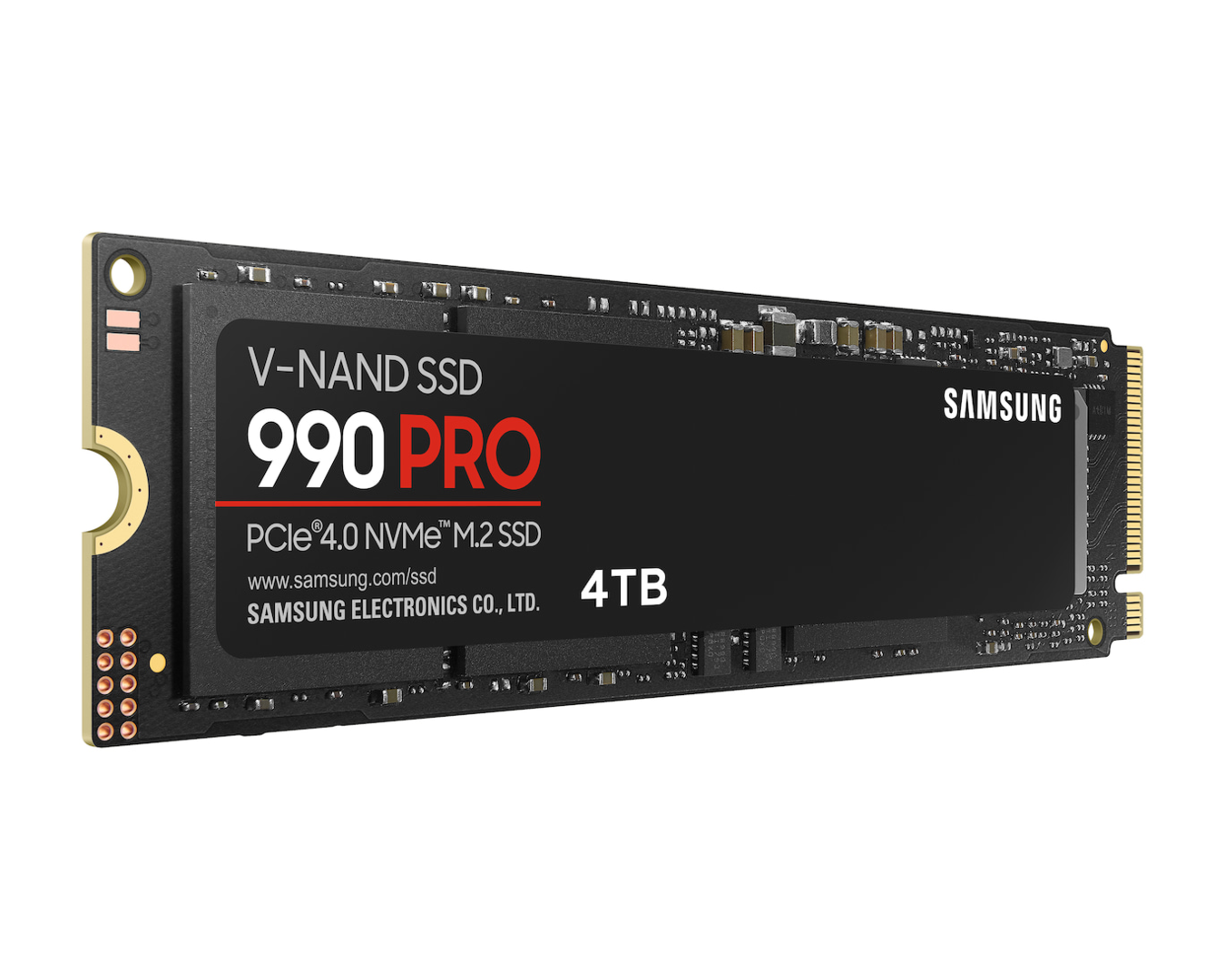

Samsung 990 Pro 4TB M.2 NVMe (MZ-V9P4T0BW)

Overview

• Interface: PCIe Gen 4.0 x4, NVMe 2.0
• Sequential Read: Up to 7,450 MB/s *
• Sequential Write: Up to 6,900 MB/s *
• Warranty: 5-year Limited Warranty or 2400 TBW Limited Warranty
• Application: Client PCs, Game Consoles
• Weight: Max 9.0g
• Dimension (WxHxD): 80 x 22 x 2.3 mm

General Feature

• Application: Client PCs, Game Consoles
• Rated Capacity: 4,000GB *
• Form Factor: M.2 (2280)
• Interface: PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD): 80 x 22 x 2.3 mm
• Weight: Max 9.0g
• Storage Memory: Samsung V-NAND TLC
• Controller: Samsung in-house Controller
• Cache Memory: Samsung 4GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667
• WWN Support: Not supported
• Device Sleep Mode Support: Yes

Performance

• Sequential Read: Up to 7,450 MB/s *
• Sequential Write: Up to 6,900 MB/s *
• Random Read (4KB, QD32): Up to 1,600,000 IOPS *
• Random Write (4KB, QD32): Up to 1,550,000 IOPS *
• Random Read (4KB, QD1): Up to 22,000 IOPS *
• Random Write (4KB, QD1): Up to 80,000 IOPS *
