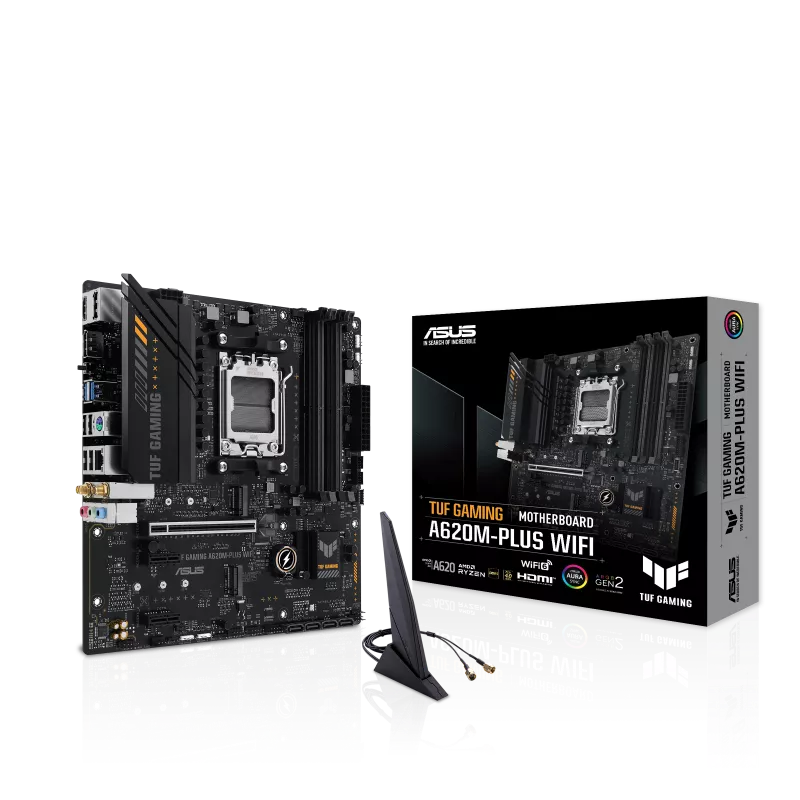

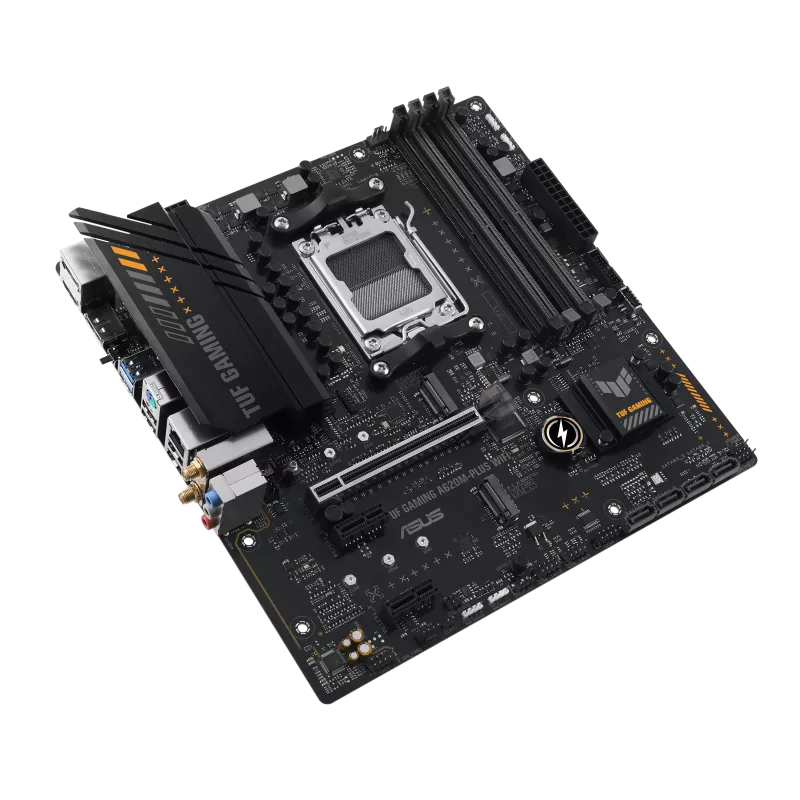

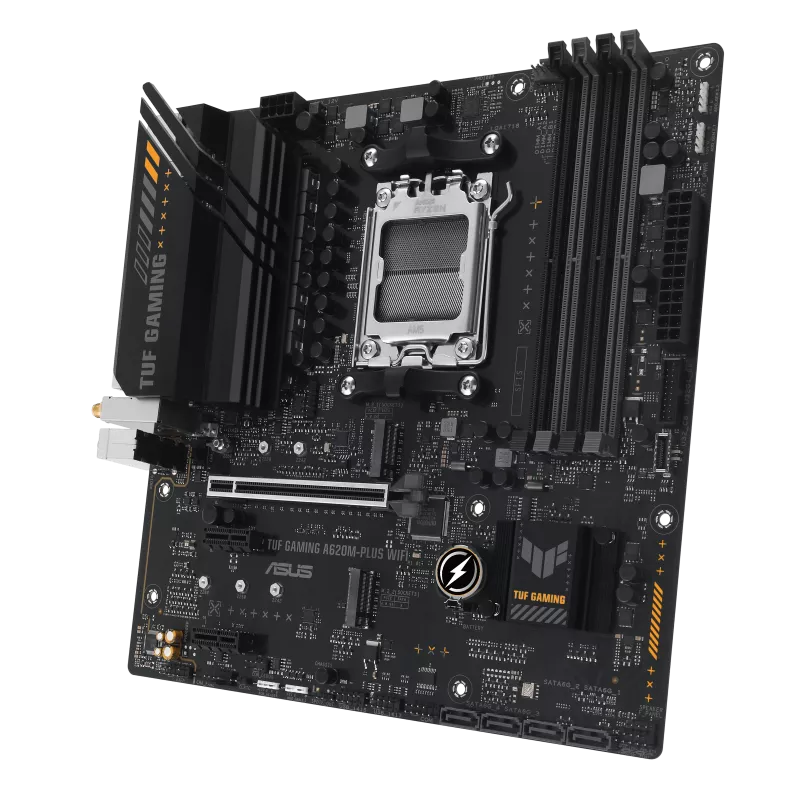

ASUS TUF GAMING A620M-PLUS WIFI – Specifications

Model

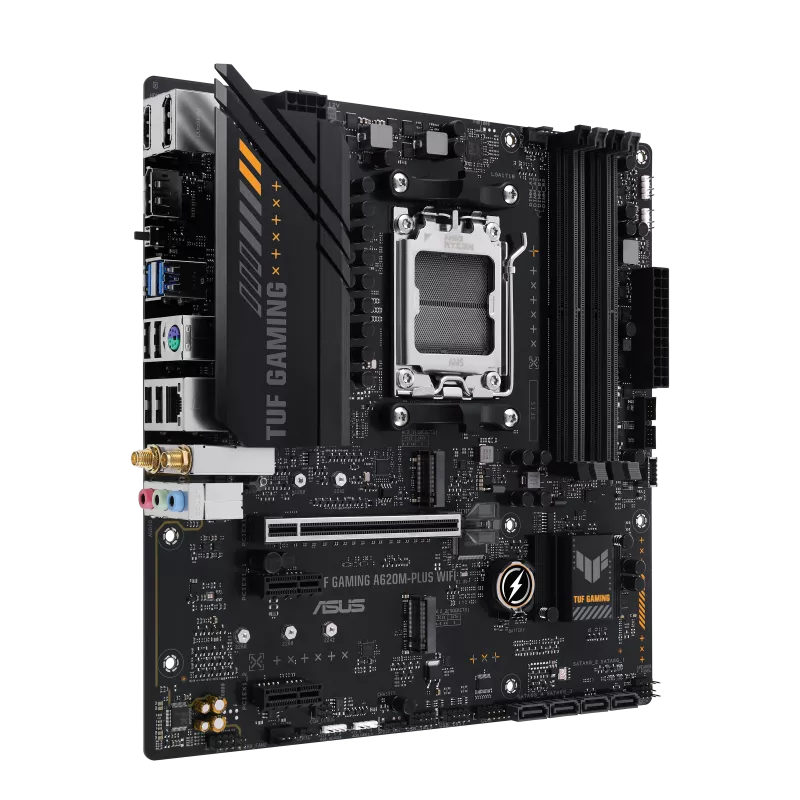

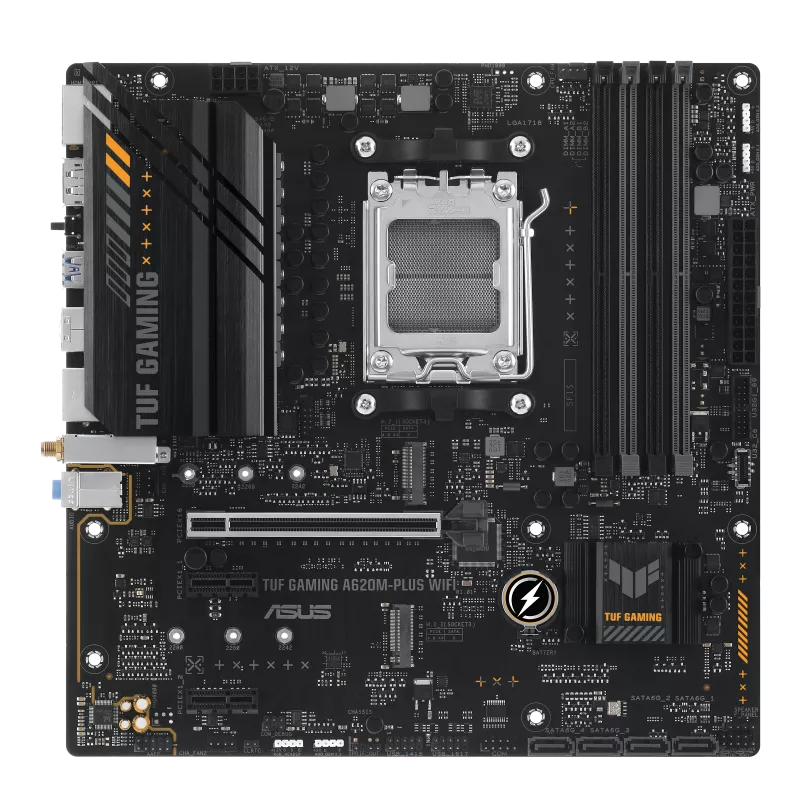

TUF GAMING A620M-PLUS WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
*Refer to ASUS CPU support list for compatibility.

Chipset

AMD A620 Chipset

Memory

• 4 × DIMM, Max 192GB, DDR5 7600+(OC) down to 4800
• Dual Channel Architecture
• Supports AMD EXPO™
• OptiMem II
• Supports On-Die ECC (Non-ECC unbuffered DDR5)

Graphics

• 2 × DisplayPort (up to 8K@60Hz)
• 1 × HDMI™ (4K@60Hz)
• *Graphics output varies by CPU

Expansion Slots

• 1 × PCIe 4.0 x16 slot (mode varies by CPU)
• 2 × PCIe 3.0 x1 slots

Storage

• 2 × M.2 (PCIe 4.0 support depends on CPU)
• 4 × SATA 6Gb/s
• Supports AMD RAIDXpert2 (RAID 0/1/10)

Ethernet

Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 (1×1), Dual band 2.4/5GHz
Bluetooth® 5.3

USB

Rear I/O (6 ports)

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0 Type-A

Front I/O (7 ports)

• 1 × USB 3.2 Gen 1 Type-C
• 1 × USB 3.2 Gen 1 header (2 ports)
• 2 × USB 2.0 headers (4 ports)

Audio

Realtek 7.1 Surround Sound HD Audio Codec
Supports up to 24-bit / 192 kHz playback

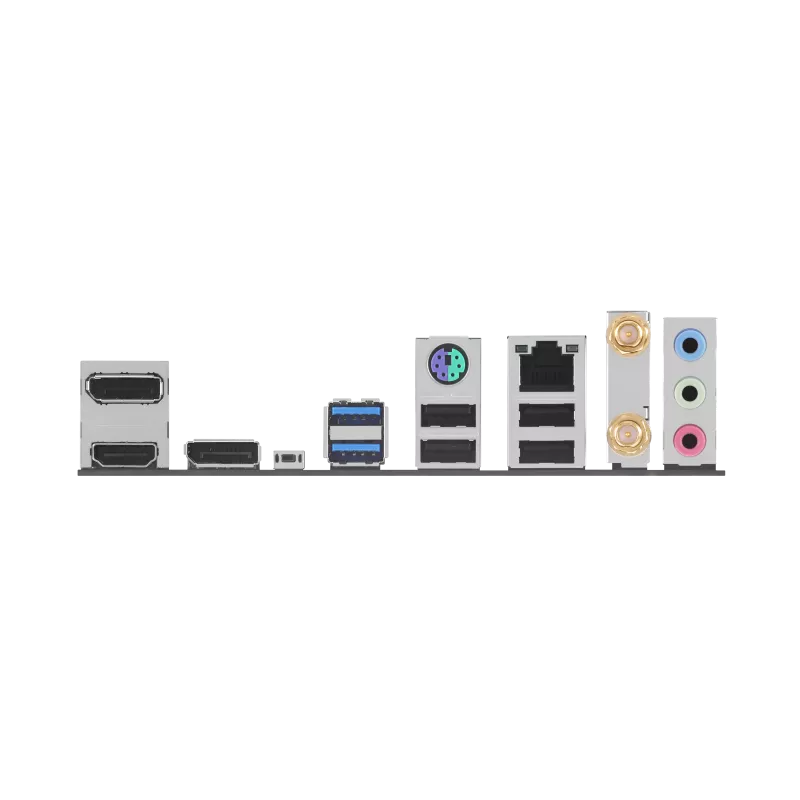

Back Panel I/O Ports

• 2 × USB 3.2 Gen 1 Type-A
• 4 × USB 2.0
• 2 × DisplayPort
• 1 × HDMI
• 1 × Wi-Fi Module
• 1 × Realtek 2.5Gb Ethernet
• 3 × Audio jacks
• 1 × BIOS FlashBack™ button
• 1 × PS/2 Keyboard/Mouse

Internal Connectors

• 1 × CPU Fan (4-pin)
• 2 × Chassis Fan (4-pin)
• 1 × 24-pin ATX power
• 1 × 8-pin CPU power
• 2 × M.2 slots
• 4 × SATA 6Gb/s
• USB 3.2 Gen 1 Type-C front panel
• USB 3.2 Gen 1 header (2 ports)
• USB 2.0 headers (4 ports)
• 3 × ARGB Gen 2 headers
• 1 × RGB header
• 1 × Clear CMOS
• 1 × COM Port
• 1 × Front Audio
• 1 × S/PDIF Out
• 1 × Speaker header
• 1 × System Panel

Special Features

• TUF Protection: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless Steel I/O
• Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot
• Thermal: VRM heatsink
• EZ DIY: BIOS FlashBack™
• Aura Sync RGB

Software

• Armoury Crate (Aura Sync, Fan Xpert 2+)
• AI Suite 3
• TUF Gaming CPU-Z
• MyASUS
• Norton 360 for Gamers (60-day trial)
• WinRAR

BIOS

256 Mb UEFI AMI BIOS

Manageability

WOL by PME, PXE

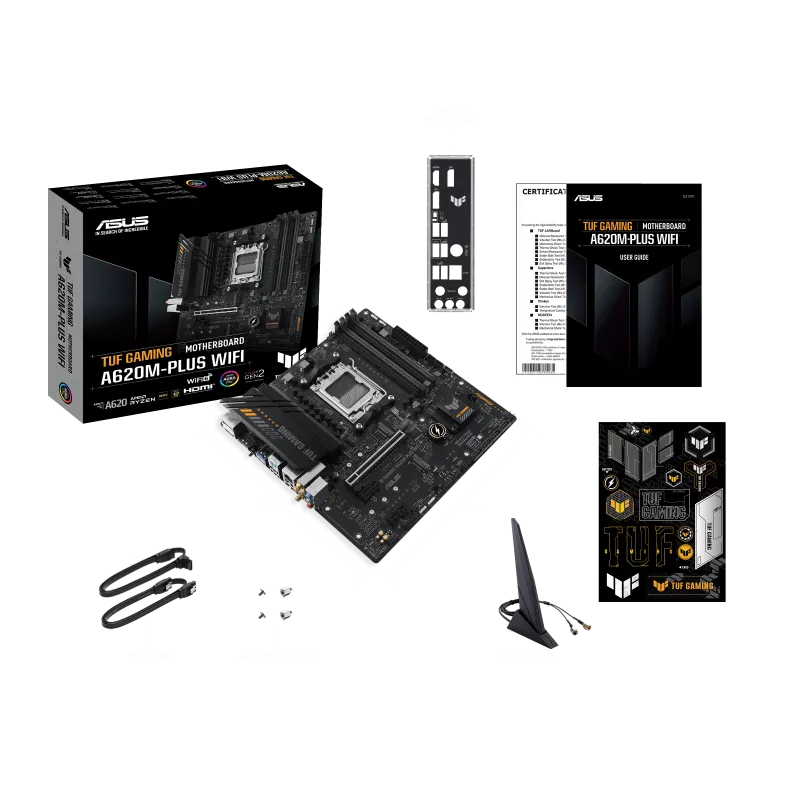

Accessories

• 2 × SATA cables

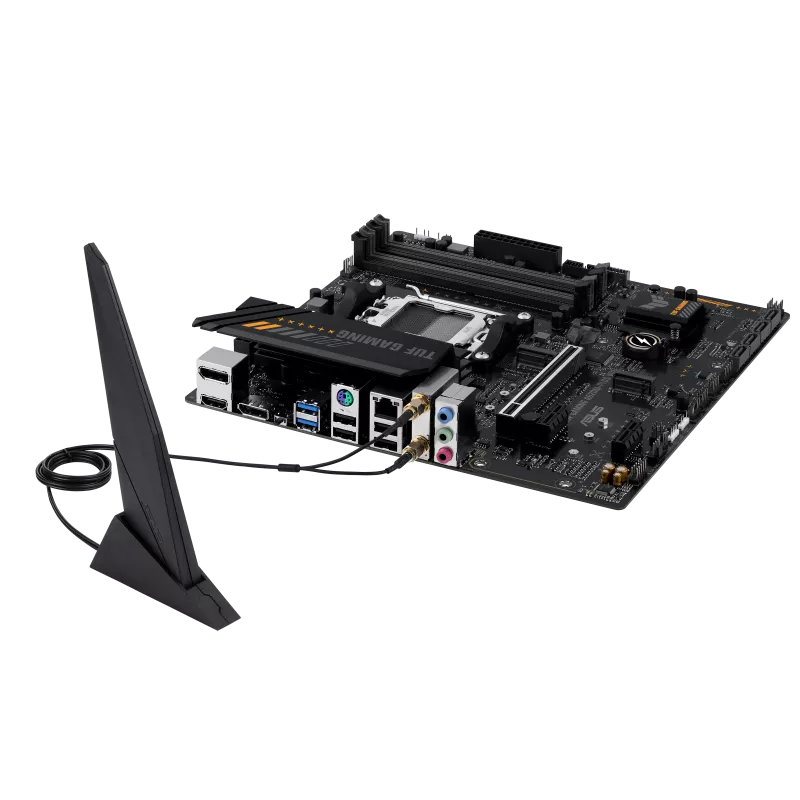

• Wi-Fi moving antennas

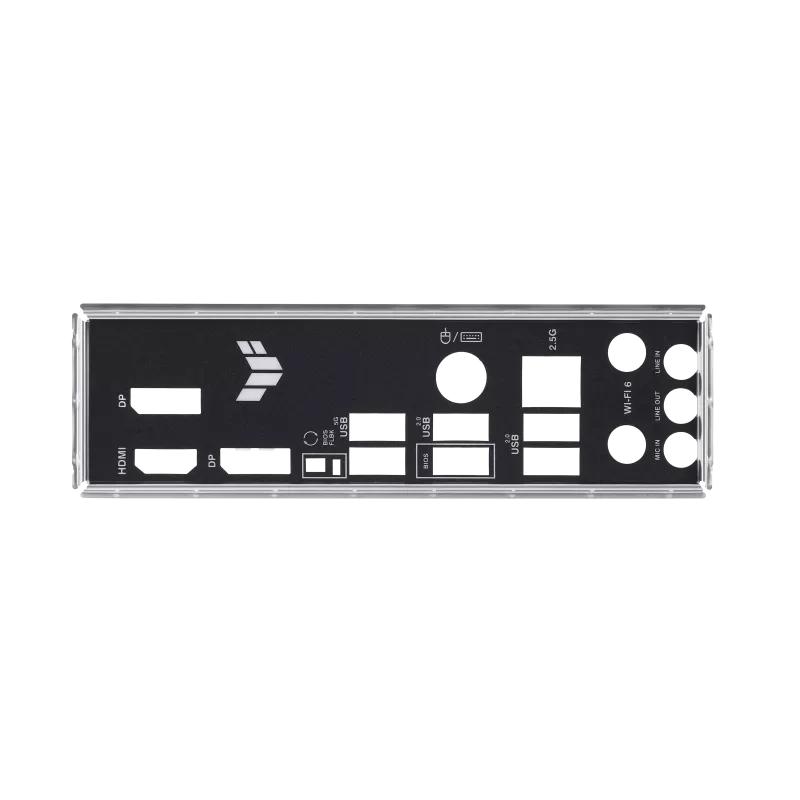

• I/O Shield
• TUF Gaming sticker
• M.2 screw package
• User guide

Operating System

Windows 11 / Windows 10 64-bit

Form Factor

Micro-ATX (24.4 cm × 24.4 cm)
