Description

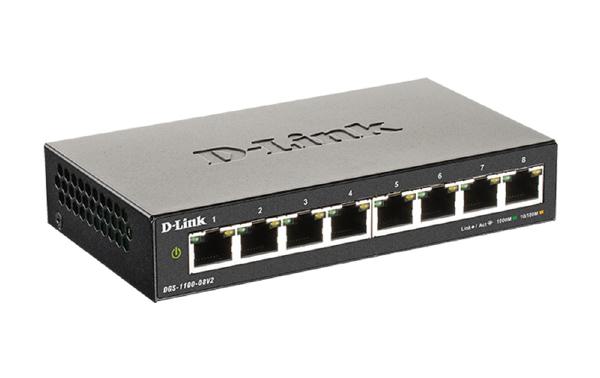

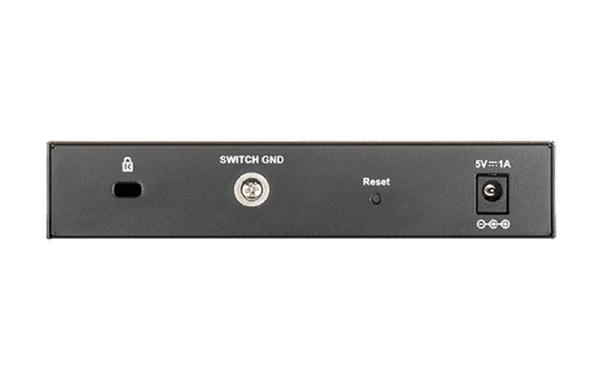

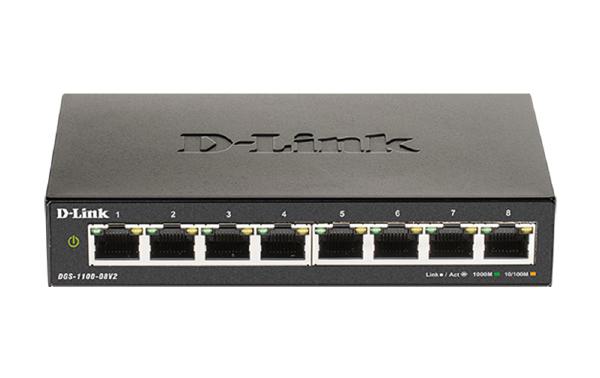

The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.

RJ-45 Ports: 8

RJ-45 Speeds: 10/100/1000

Combo Ports (RJ-45 + SFP): 8 RJ45 Ports

SFP (Small Form-Factor Pluggable) Ports : 0

SFP Speeds: 0

PoE++ (60w) or higher available?: No

Number of PoE Ports: 0

Extended PoE?: No

Capacity in Millions of Packets per Second (mpps): 11.9 Mpps

Switching Capacity in Gigabits per Second (Gbps):16 Gbps

Web-based GUI: Yes

Redundant Power Supply: No

19″ Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
